| Combines | Blow moulding, filling and capping in one block |
| Output range | 2,000-48,000 BPH |
| Format range | 0.2-16 L PET |
| Products | Still water, CSD, juice, tea, edible oil |
| Valves | Load cell, volumetric, mechanical or semi-electric |
| Operation | One operator for the complete block |
Maintenance effort should follow the wear map, not the machine layout. Seals, capping inserts, guide rail blocks and filters account for most unplanned stops; painting and polishing account for none. A short daily check on those four items beats a long monthly inspection.

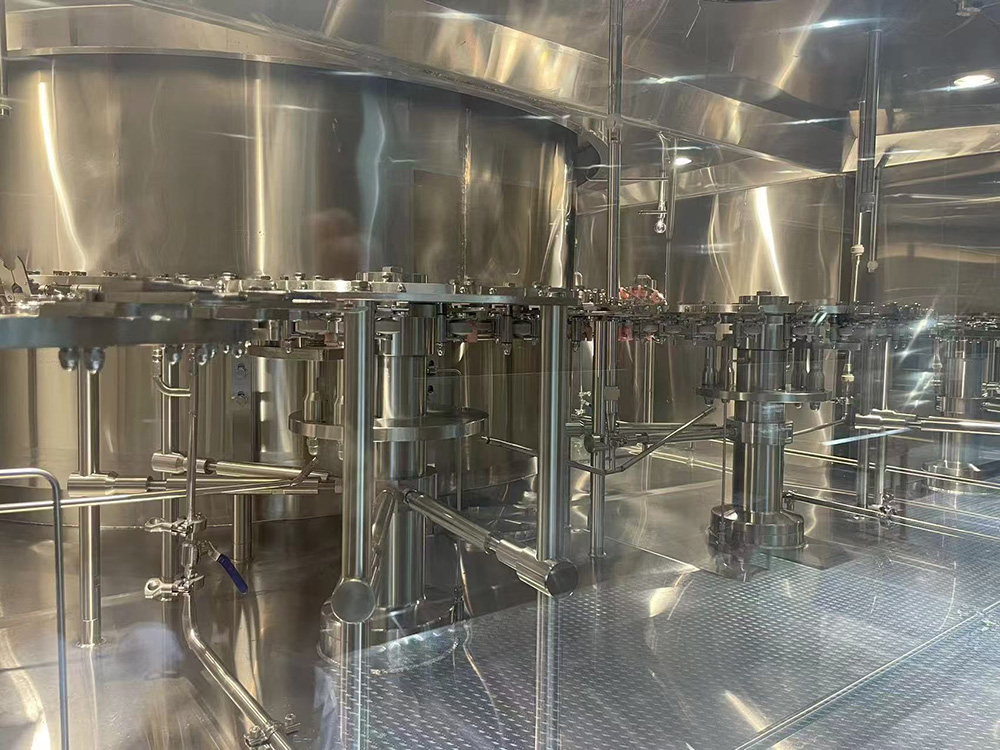

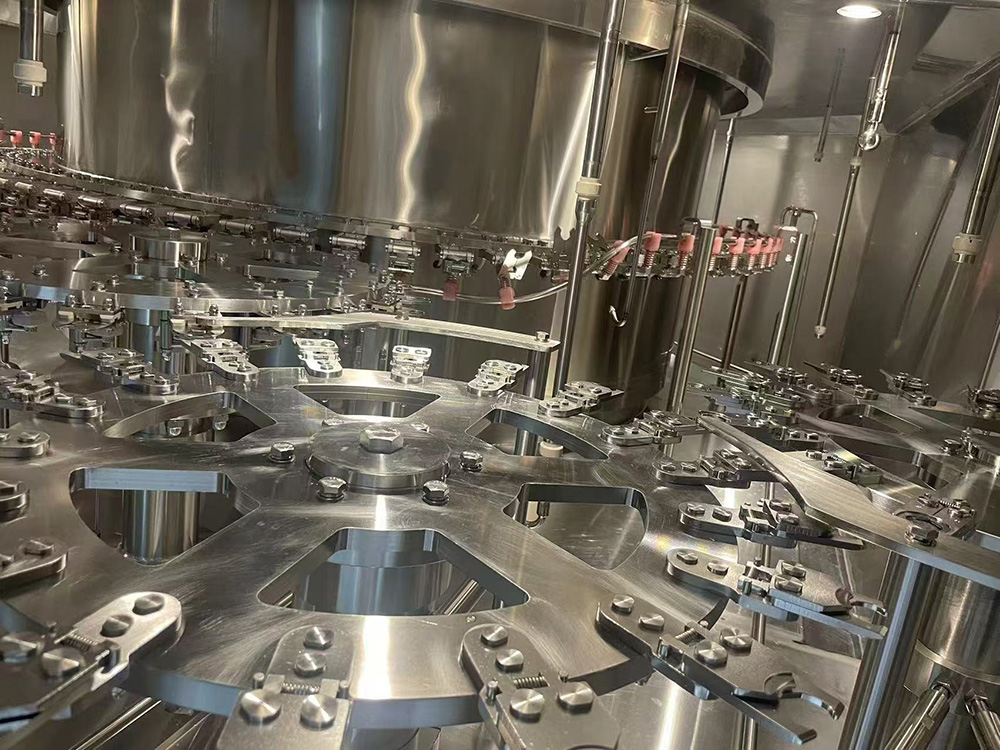

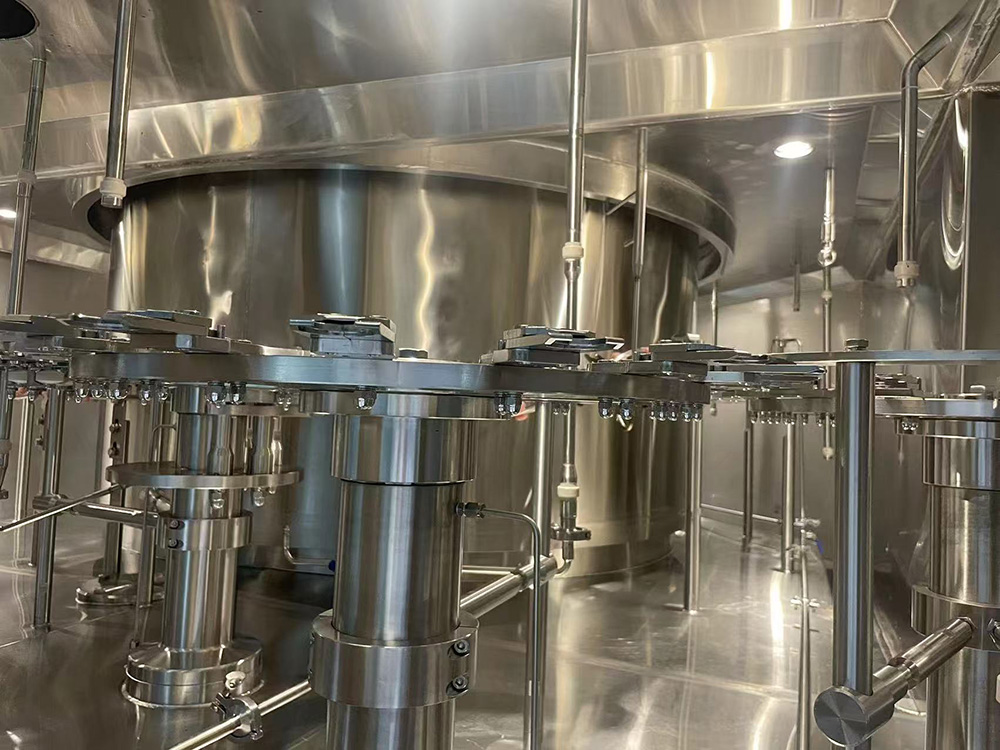

Every detail prioritizes Class 100 local cleanliness: stainless steel bottle grippers, rigid tube distributors, fully sealed viewing windows and maintenance gloves are standard.
A combiblock joins blow moulding, filling and capping into one frame with one drive and one control system. The preform goes in at one end and the capped bottle comes out at the other, with no intermediate buffer and no bottle storage between blowing and filling.
In terms of operational efficiency, the machine achieves a finished product yield of no less than 98%, with a defective cap rate controlled below 0.1%.
| Configuration | What is inside | Typical use |
|---|---|---|
| 3-in-1 monoblock | Rinse, fill, cap | Still water in bought bottles |
| Combiblock | Blow, fill, cap | PET lines with in-house blowing |
| Combiblock + labeller | Blow, fill, cap, label | Single-footprint PET line |
| Combiblock + packer | Blow to case | High-volume single-format plant |
For the same duty in another bottle format, the Blow-fill-cap Combibloc for CSD & Sparkling Water is specified separately.

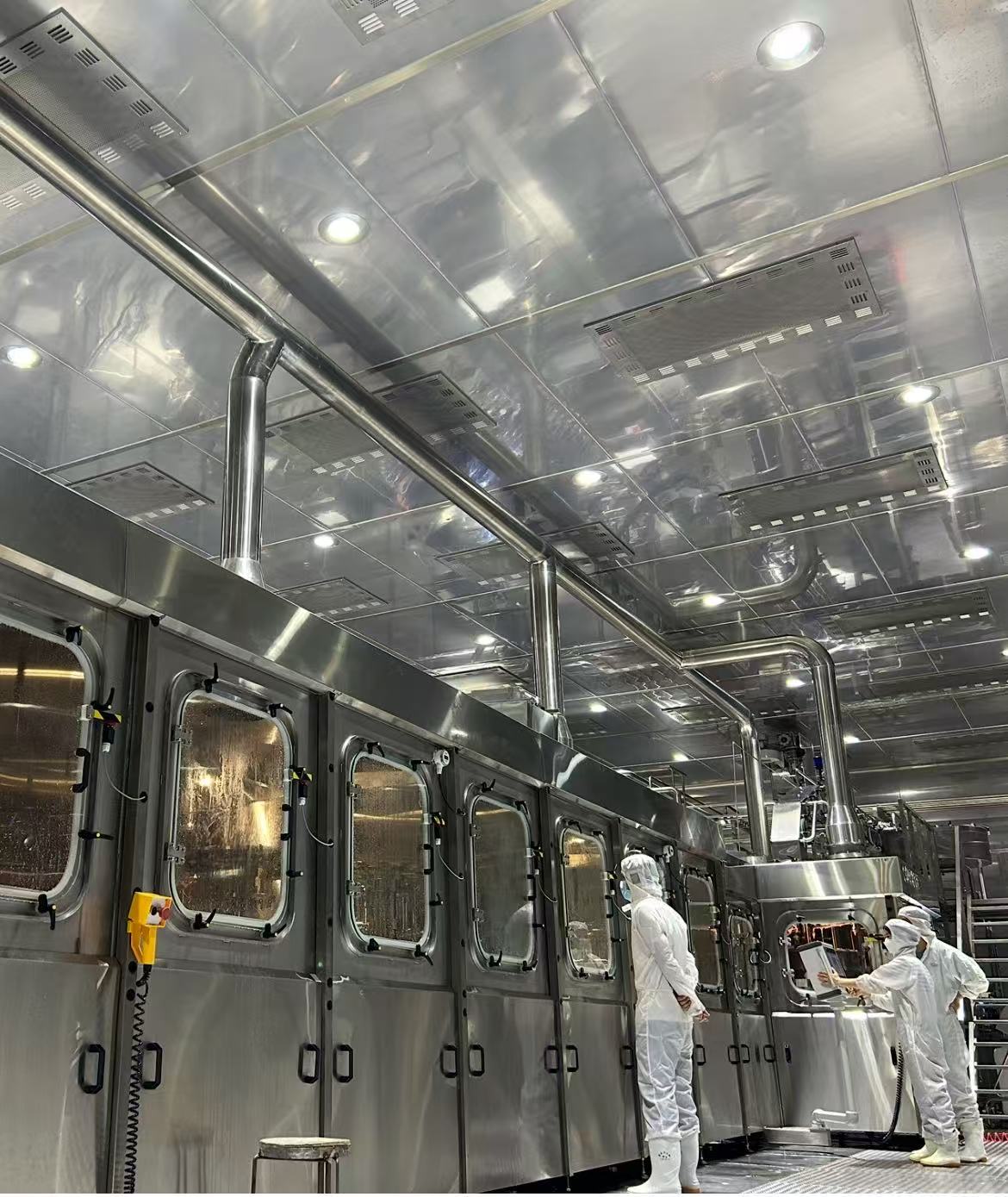

With a positive-pressure enclosure over the blow-fill-cap path, filtered air, and a defined cleaning cycle for the filler and the capper. The bottle is formed, filled and closed inside the same zone, which is the reason the format exists.
Equipped with a full CIP online cleaning system, the pipeline is designed to prevent material backflow during production while enabling full fluid circulation during sanitation cycles, supported by 60 sets of automatic dummy cups for unmanned cleaning cycles.
Site requirements, air and water consumption sit with the Blow-fill-cap Combibloc for Still Water.
At the discharge of the block, in good capped bottles per hour, including the stops caused by blowing. Measuring at the filler alone flatters the number, because the filler waits for the blower more often than the other way round.
The same question is worked through from another angle in How Blow-Fill-Cap Technology Minimizes Contamination.
A monoblock combines rinsing, filling and capping. A combiblock adds blow moulding, so the preform goes in and the capped bottle comes out. The two terms are often confused, and the difference is whether a blow moulder is inside the block.
It is designed for one operator on the complete block, which is fewer people than three separate machines need. The saving is real only if the plant also removes the buffer and the bottle handling between stations.
The filler stops within seconds because there is no accumulation. That is why the uptime target for a combiblock is set for the block, not for each machine, and why preventive maintenance on the blower is not optional.
It removes the empty-bottle buffer and the conveyor between the blower and the filler, which is the largest space item on a conventional PET line. The exact saving depends on the buffer length in the original layout.
Country: Kazakhstan
Product: PET Bottled Carbonated Soft Drinks
Capacity: 12000BPH (1L)
Solution:Carbonated Drinks Production Line
Country: Maldives
Product: PET Bottled Mineralized Water
Capacity: 24,000BPH (500ml); 2 Lines
Solution:Water Production Line
