1,800 BPH Barrel Water Line Assembled

Views: 403 Author: Howie SUN Publish Time: Update Time:
Bottled water is the simplest beverage to fill and the easiest line to oversize, because the filler rating hides the treatment ceiling, the changeover time and the packer limit. The heart of the line is a washing filling capping monobloc with 10 washing stations: alkaline washing, drip-off, reclaimed water rinsing (two stations), disinfectant rinsing (two stations), drip-off, purified water rinsing (two stations), and final drip-off.

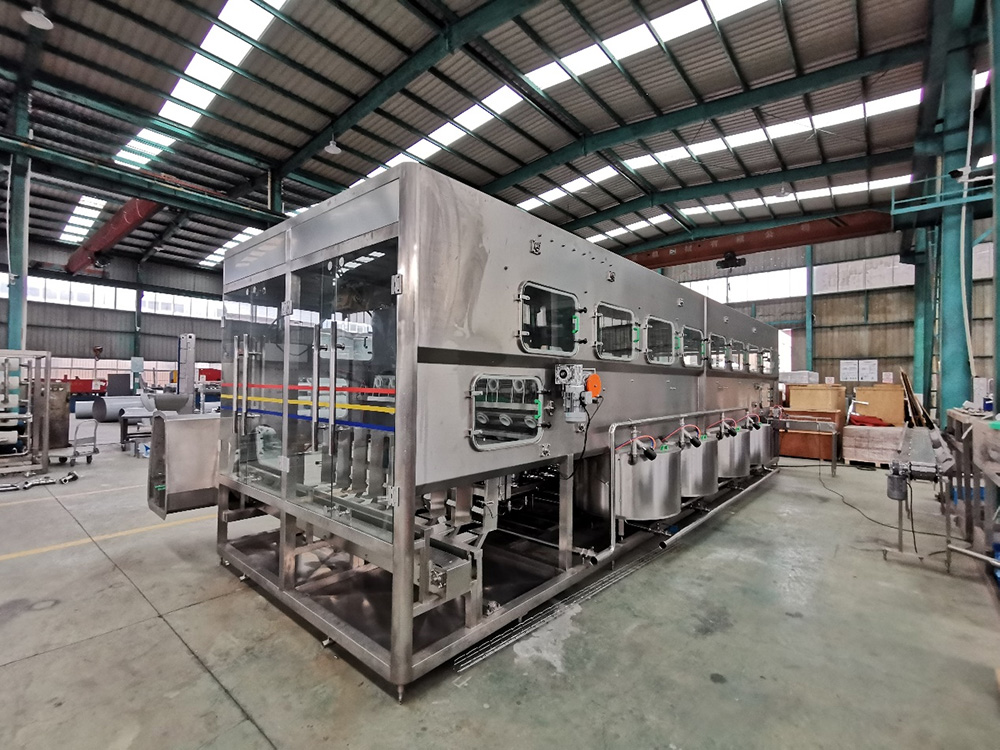

Completes 1800 BPH Barrel Water Filling Line Assembly

Key facts at a glance
ApplicationStill water, RO water, mineral water
Filling principleGravity or volumetric valve
Capacity range5,000-48,000 BPH at 500 ml
Bottle range200 ml to 16 L, by configuration
Contact materialSUS 304 product contact, CIP-ready
Line scopeTreatment, blowing, filling, capping, labelling, packing

What does a water line have to get right before speed matters?

A water line stands or falls on three inputs: raw water analysis, neck finish, and how well filler and capper are matched. Most of the meeting goes on BPH; the other two get a fraction of the time. Rinser clamps and capping heads are cut for one neck finish; a 1 mm thread change means new change parts rather than a new machine.

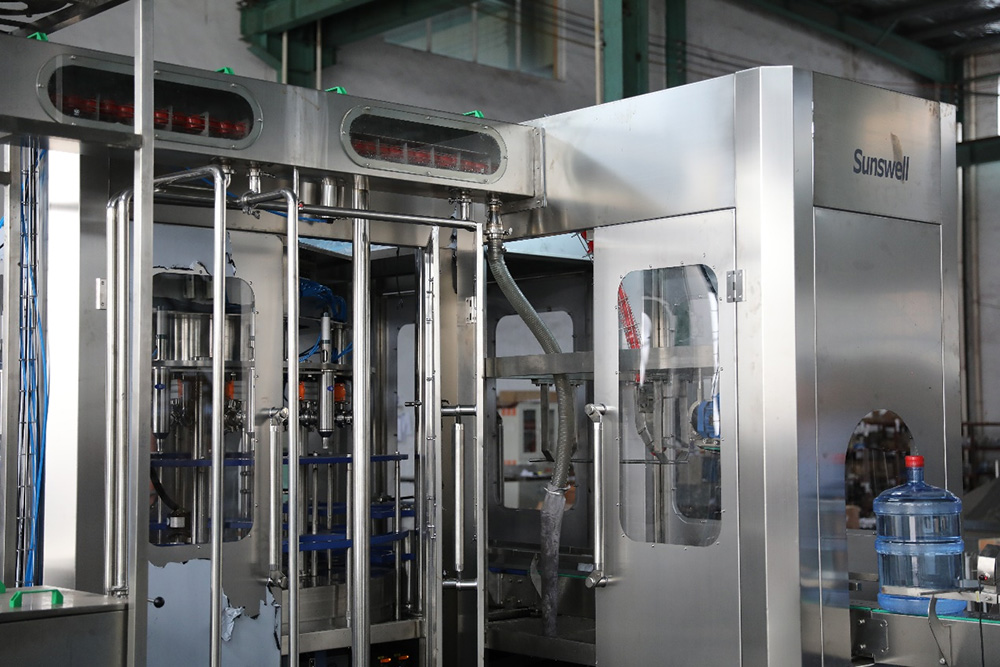

The heart of the line is a washing filling capping monobloc with 10 washing stations: alkaline washing, drip-off, reclaimed water rinsing (two stations), disinfectant rinsing (two stations), drip-off, purified water rinsing (two stations), and final drip-off.

How do you turn daily demand into a BPH figure?

Work backwards from cases per day. Divide bottles per day by productive hours, then divide again by a production factor of 0.65-0.85. The factor covers changeover, CIP, label roll changes and downstream stops. Sizing at 1.0 is the most common and most expensive mistake in a water project, because the shortfall only appears once the line is running.

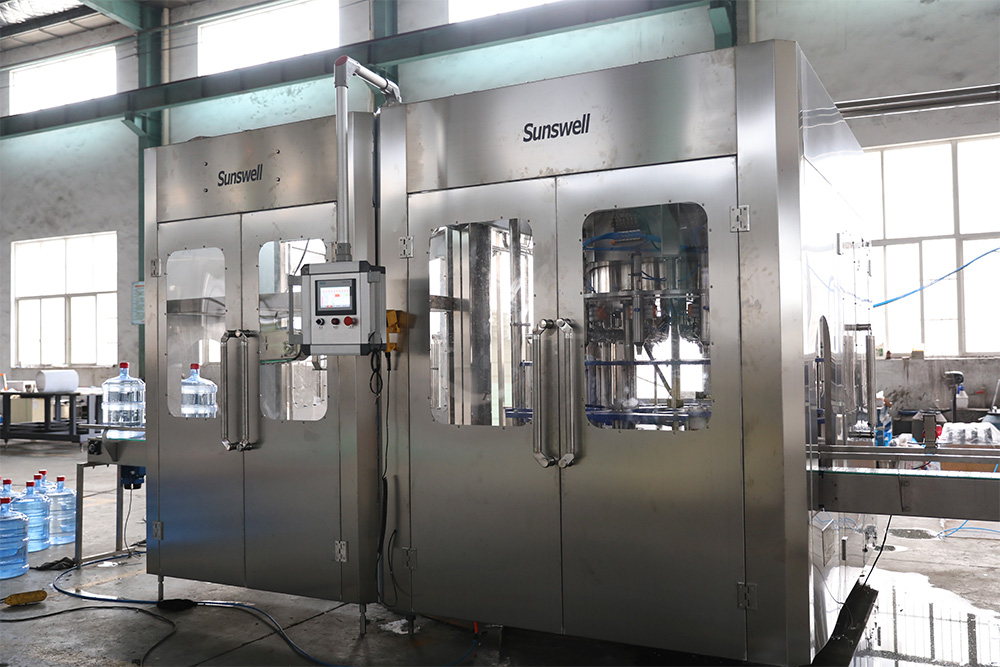

Rated at 1800 barrels per hour based on the standard 18.9L format, the line covers the entire process from empty barrel decapping, external brushing, barrel feeding, washing/filling/capping, to light inspection and shrink wrapping.

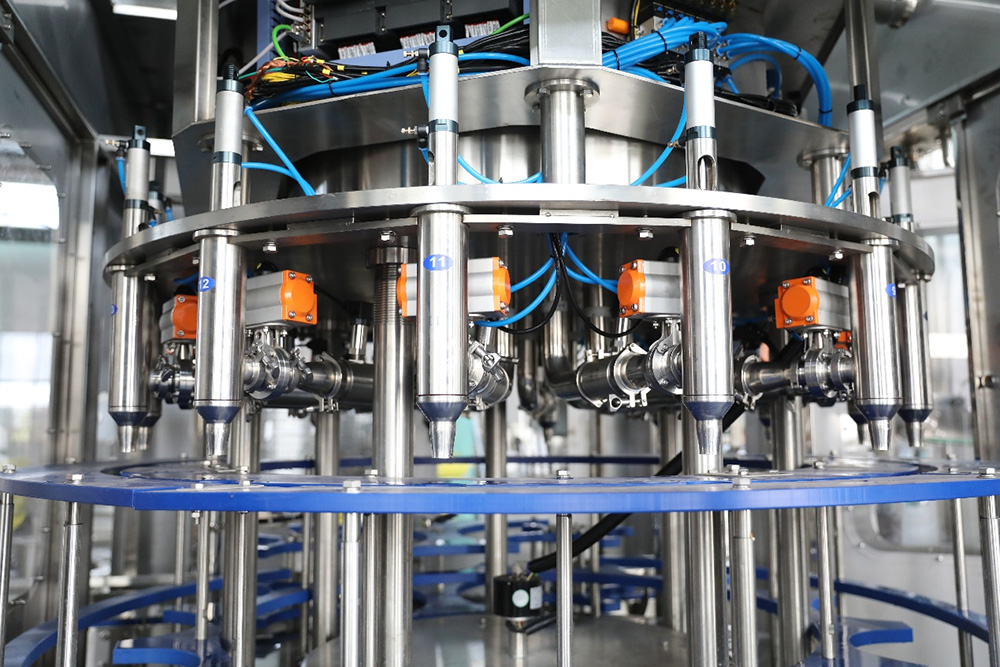

Filling principleBest forWatch out for
GravityStill water, one rigid bottle sizeThin-wall bottles deform under head pressure
Volumetric valve3-15 L and mixed formatsValve wear shows as slow drift, not a sudden error
IsobaricCarbonated water onlyNeeds counter-pressure, so slower per valve
Load cellOil and high-value liquidSlower cycle, higher cost per valve

Rated output, change parts and services are listed on the Blow-fill-cap Combibloc for Still Water page.

What changes when the bottle format changes?

Star wheels, guide rails, grippers, cap chute and filling recipe all change with the format. The parts are not the cost; the time is. Two formats on one line typically cost 40-90 minutes per switch, which is why the production factor falls from about 0.85 to 0.70 and why a second small line is sometimes cheaper than one flexible line.

Where this becomes a line rather than a single machine, the Gravity Filling Machine for Still Water is the starting point.

Where does mineral water differ from purified water?

Mineral water is defined by its source and its mineral profile, so treatment is limited to what the label claim allows. Purified water starts from any feed and is built up to a specification. The filling machine is the same; the treatment train and the legal claim are not.

The same question is worked through from another angle in How to Design an Efficient Water Filling Line Layout.

How to read the numbers. The capacity figures here are reference ranges taken from the product specification. Bottle-format changeover and CIP are outside the rated figure; a line sized at 1.0 delivers less than the nameplate from the first week.

Frequently asked questions

Is gravity or volumetric filling more accurate?

Gravity holds a fill level, so accuracy depends on bottle geometry. Because volumetric filling doses by chamber volume, accuracy holds across bottle sizes. For one rigid bottle size, gravity is enough; for 3-10 L or mixed formats, volumetric is safer.

How long does installation and commissioning take?

For a complete line with blowing, filling, labelling and packing, plan several weeks on site after arrival, plus operator training. Civil work and utility readiness are the usual delay, not the machinery.

Can a still water line be converted to carbonated later?

Not on the same filler. Carbonation needs isobaric valves, a CO2 dosing and mixing unit, and a different bowl. A combiblock can carry both valve sets, but they are separate specifications, not a field conversion.

What is the acceptable fill level tolerance for water?

Commercial practice is a stated band per bottle size, typically checked by weight at the filler outlet. The band belongs in the acceptance protocol. A line without a written tolerance will argue about it at commissioning.

Key takeaways
  1. Size with a production factor of 0.65-0.85, never 1.0.
  2. Capacity planning starts with CIP and changeover, not with the filler nameplate.
  3. It is the bottle format, not the BPH target, that picks the filling system.
  4. A 5 L line and a 500 ml line are separate specifications; treating them as one flexible option is where budgets slip.
About the author
Written by the Sunswell engineering team - led by Howie SUN, Founder & CEO, with 14 years in filling and blow-moulding equipment R&D and turnkey project delivery across 71+ countries.
Last reviewed: 2026-08-28 . Reviewed by Sunswell engineering team
×
