| Filling principle | Hot-fill, up to 85 C |
| Capacity range | 6,000-36,000 BPH at 0.2-2 L |
| Container | Heat-resistant PET geometry, or glass |

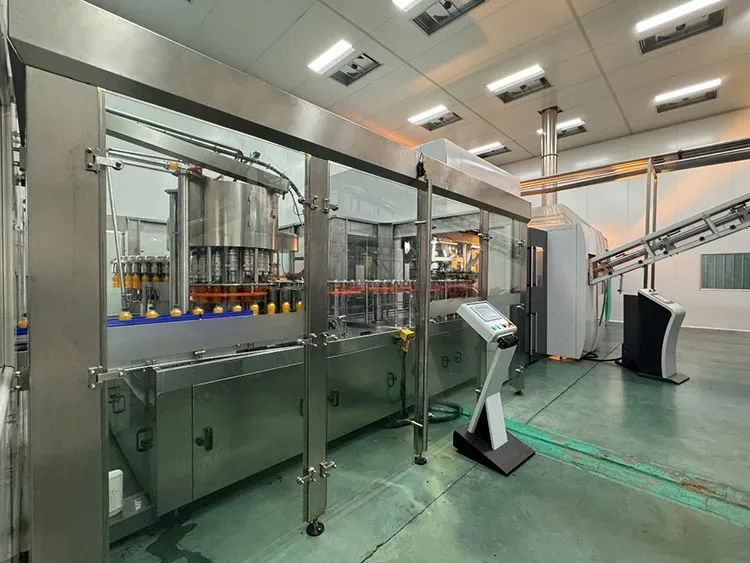

| Line | Hot-fill monobloc with tunnel pasteuriser |
| Products | Juice, tea, nectar, functional drinks |
| Key control | Fill temperature, hold time, cap seal |
Cap seals and filling valve O-rings, because they see the highest temperature every cycle. A seal that is fine on a water line at 20 C will harden in weeks at 85 C. The spare parts list should carry those two items in proportion to the number of valves, not as a single set.

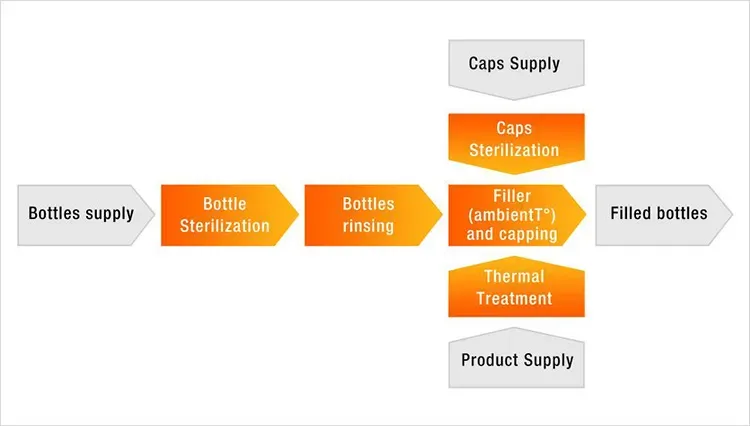

Cold filling protects heat-sensitive flavour and colour and allows a lighter bottle. It needs either a preservative system or a validated cold chain, and it moves the microbial control to the product and the plant rather than to the filler. The decision is commercial before it is technical.
| Route | Temperature | What it costs |
|---|---|---|
| Hot fill | Up to 85 C | Heat-resistant bottle and a cooling tunnel |
| Cold fill with preservative | Ambient | Formulation constraint, not a machine constraint |
| Cold fill with in-line pasteuriser | Product-side only | Separate pasteuriser and a closed filling zone |
| Hot fill in glass | Up to 85 C | Glass mass, slower line, higher transport cost |
Sizing for this duty runs through the Hotfill Type Filling Machine for Juice, where the valve count is set out.

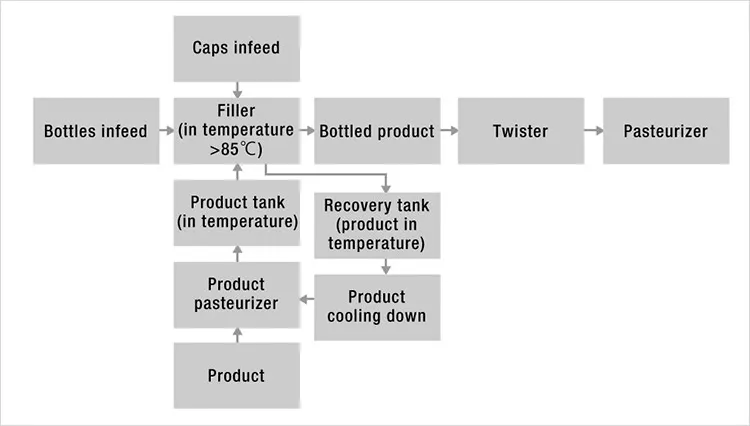

The bottle leaves the filler at up to 85 C and has to come down in a controlled ramp. A plunge cools the outside first, the inside contracts later, and the panel pulls in. The tunnel zones are set per bottle geometry and checked with a probe in the product.
Large cooling equipment is provided to cool the filled product to room temperature.
Throughput and change-part lists are on the Juice By Volumetric Filler page rather than in this note.
Glass brings mass, breakage and a slower line. It also brings a closure decision: crown, lug or screw. A glass hot-fill line usually runs at a lower rate than the same filler on PET, and the difference is handling and inspection, not the valve.
The same question is worked through from another angle in Benefits of Using Piston Filling Machines for Juice with.
It replaces the bottle steriliser for acidic products, because the fill temperature and hold time do the microbial work. It does not replace correct product formulation or a validated hold tube.
Usually fill temperature above the bottle rating, or a vacuum that forms as the product cools. Check the fill temperature against the bottle specification and the cap seal before changing the cooling profile.
With a filter change and a different valve bore for the pulp, yes. Clear juice needs finer filtration, and pulp needs agitation in the bowl so the fibre does not settle.
A controlled ramp rather than a cold plunge, so the bottle does not deform under vacuum. The tunnel zones are set per bottle geometry and validated with a temperature probe in the product.
