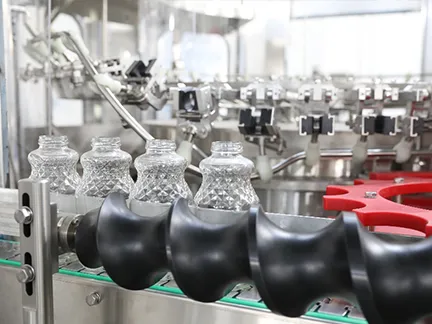

Case Study: Bottled Water Plant Upgrade with Combibloc

Views: 1902 Author: Howie SUN Publish Time: Update Time:
The combiblock argument is floor space and labour, and the price is a shorter cushion between the blower and the filler when something stops.
Key facts at a glance
CombinesBlow moulding, filling and capping in one block
Rated output2,000-48,000 BPH
Bottle range0.2-16 L PET
ProductsStill water, CSD, juice, tea, edible oil
ValvesLoad cell, volumetric, mechanical or semi-electric
OperationOne operator for the complete block

What does a combiblock actually combine?

A combiblock joins blow moulding, filling and capping into one frame with one drive and one control system. The preform goes in at one end and the capped bottle comes out at the other, with no intermediate buffer and no bottle storage between blowing and filling.

Where does a combiblock hurt when something stops?

Because there is no buffer, a stop at the blower reaches the filler in seconds. That is the trade: less floor space and less labour in exchange for less tolerance of short stops. The maintenance plan has to treat the blower and the filler as one unit, with one set of uptime targets.

ConfigurationWhat is insideTypical use
3-in-1 monoblockRinse, fill, capStill water in bought bottles
CombiblockBlow, fill, capPET lines with in-house blowing
Combiblock + labellerBlow, fill, cap, labelSingle-footprint PET line
Combiblock + packerBlow to caseHigh-volume single-format plant

The Still Water 5L Volumetric is the reference unit for this configuration.

Which filling valve belongs in a combiblock?

The valve follows the product, not the block. Still water runs gravity or volumetric; oil runs load cell; CSD runs isobaric; juice runs hot fill or volumetric. The block is the frame, and the valve set is specified per product family, which is why one combiblock cannot simply switch between water and CSD.

Throughput and change-part lists are on the Blow-fill-cap Combibloc for Still Water page rather than in this note.

How is the hygiene zone around the block maintained?

With a positive-pressure enclosure over the blow-fill-cap path, filtered air, and a defined cleaning cycle for the filler and the capper. The bottle is formed, filled and closed inside the same zone, which is the reason the format exists.

The same question is worked through from another angle in How to Integrate Combibloc Fillers in Small Production Lines.

How is output measured on a combiblock?

At the discharge of the block, in good capped bottles per hour, including the stops caused by blowing. Measuring at the filler alone flatters the number, because the filler waits for the blower more often than the other way round.

How to read the numbers. Capacity on these pages means the specification range, before any site-specific derating. A combiblock rating assumes one preform and one cap; mould change and CIP sit outside it, so size on 0.65-0.85.

Frequently asked questions

What is the difference between a combiblock and a monoblock?

A monoblock combines rinsing, filling and capping. A combiblock adds blow moulding, so the preform goes in and the capped bottle comes out. The two terms are often confused, and the difference is whether a blow moulder is inside the block.

Why is there no bottle buffer in a combiblock?

The blower and the filler are mechanically linked, so bottles move directly from the mould to the filler. Removing the buffer saves space and dust exposure, but it also removes the cushion that absorbs short stops.

What happens if the blower stops?

The filler stops within seconds because there is no accumulation. That is why the uptime target for a combiblock is set for the block, not for each machine, and why preventive maintenance on the blower is not optional.

How much floor space does a combiblock save?

It removes the empty-bottle buffer and the conveyor between the blower and the filler, which is the largest space item on a conventional PET line. The exact saving depends on the buffer length in the original layout.

Can a combiblock run two bottle formats in one shift?

With a mould set and a recipe per format, yes. The changeover includes the mould, so it is longer than a filler-only change and is normally scheduled between campaigns rather than inside a shift.

Key takeaways
  1. A combiblock trades buffer tolerance for floor space and labour.
  2. The valve follows the product; the block is only the frame.
  3. The buffer is the space you save and the cushion you give up.
  4. Blowing and filling keep separate cleaning regimes.
About the author
Written by the Sunswell engineering team - led by Howie SUN, Founder & CEO, with 14 years in filling and blow-moulding equipment R&D and turnkey project delivery across 71+ countries.
Last reviewed: 2026-08-28 . Reviewed by Sunswell engineering team
×
