30,000 BPH Water Bottle Blow Moulding Machine Completed

Views: 4606 Author: Howie SUN Publish Time: Update Time:
A bottle water line is treatment, blowing, filling, capping and packing in one chain, and its real output is set by the slowest station in that chain rather than by the filler nameplate. Heating temperature and time can all be controlled by computer for different preform weight.

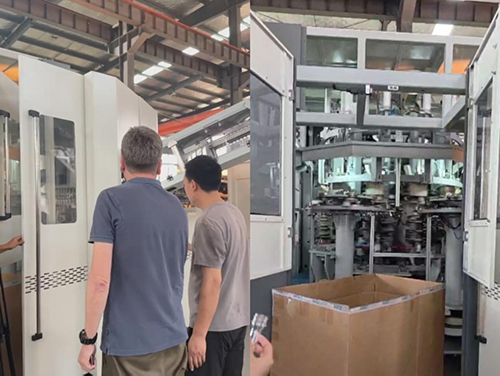

Recently completed 30000BPH Water Bottle Blow-Molding Machine

Key facts at a glance
Product fitStill water, RO water, mineral water
Filling principleGravity or volumetric valve
Capacity5,000-48,000 BPH at 500 ml
Container range200 ml to 16 L, by configuration
MaterialSUS 304 product contact, CIP-ready
Line scopeTreatment, blowing, filling, capping, labelling, packing

What does a water line have to get right before speed matters?

A water line stands or falls on three inputs: raw water analysis, neck finish, and how well filler and capper are matched. BPH takes the meeting; the neck finish and the capper match get the last five minutes. Rinser clamps and capping heads are cut for one neck finish; a 1 mm thread change means new change parts rather than a new machine.

This Blow Molding machine has 14 cavities, each cavity can produce about 2500 water bottles per hour.

Gravity, volumetric or isobaric: which filling system fits?

Gravity filling holds a level in a rigid bottle and costs least per valve. Volumetric filling doses a fixed volume into a chamber, so it holds accuracy across 3 L, 5 L and 10 L formats without changing the head. Isobaric filling is for carbonated product only, because it keeps CO2 in solution under counter-pressure. A still water line never needs it.

Blow Molding The equipment has the special designed twice blowing system (equipment for hot filling bottles has three times blowing system): preblowing and blowing with high pressure to finally make bottle.

Filling principleBest forWatch out for
GravityStill water, one rigid bottle sizeThin-wall bottles deform under head pressure
Volumetric valve3-15 L and mixed formatsValve wear shows as slow drift, not a sudden error
IsobaricCarbonated water onlyNeeds counter-pressure, so slower per valve
Load cellOil and high-value liquidSlower cycle, higher cost per valve

For the same duty in another bottle format, the Gravity Filling Machine for Still Water is specified separately.

What changes when the bottle format changes?

Star wheels, guide rails, grippers, cap chute and filling recipe all change with the format. The parts are not the cost; the time is. Two formats on one line typically cost 40-90 minutes per switch, which is why the production factor falls from about 0.85 to 0.70 and why a second small line is sometimes cheaper than one flexible line.

After the bottle blowing, we need water to cool down the temperature in the mold (hot filling bottle need hot oil to keep the temperature to form).

The unit behind this configuration is the Volumetric Filling Machine for Still Water.

Where does mineral water differ from purified water?

Mineral water is defined by its source and its mineral profile, so treatment is limited to what the label claim allows. Purified water starts from any feed and is built up to a specification. The filling machine is the same; the treatment train and the legal claim are not.

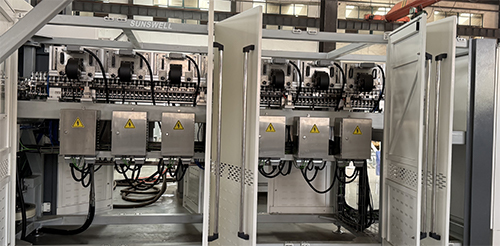

Heating temperature and time can all be controlled by computer for different preform weight.

The same question is worked through from another angle in 24,000 BPH Water Line Connected in the U.S..

How to read the numbers. The capacity tab on the specification sheet gives ranges; treat them as such. Rated BPH assumes one format and no cleaning stops. Plan on a factor of 0.65-0.85 to cover changeover, CIP and downstream jams.

Frequently asked questions

Can one water line run 500 ml and 1.5 L bottles?

Yes, with change parts: star wheels, guide rails, grippers and a filling recipe. Budget 40-90 minutes per switch and expect the production factor to drop from about 0.85 to 0.70.

What utilities does a 12,000 BPH water line need?

Plan for 380 V three-phase power, 0.6-0.8 MPa compressed air, and a chiller if blow molding runs in-house. Exact consumption belongs in the utility schedule of the quotation, not in a rule of thumb.

Can a still water line be converted to carbonated later?

Not on the same filler. Carbonation needs isobaric valves, a CO2 dosing and mixing unit, and a different bowl. A combiblock can carry both valve sets, but they are separate specifications, not a field conversion.

What is the acceptable fill level tolerance for water?

Commercial practice is a stated band per bottle size, typically checked by weight at the filler outlet. The band belongs in the acceptance protocol. A line without a written tolerance will argue about it at commissioning.

Key takeaways
  1. Capacity is the rating of the slowest station, not the filler nameplate.
  2. Before output is discussed, neck finish and bottle rigidity have already fixed the change parts and the filling system.
  3. Put CIP and changeover into the capacity calculation at the start, not after the line is running.
  4. A 5 L line and a 500 ml line are separate specifications; treating them as one flexible option is where budgets slip.
About the author
Written by the Sunswell engineering team - led by Howie SUN, Founder & CEO, with 14 years in filling and blow-moulding equipment R&D and turnkey project delivery across 71+ countries.
Last reviewed: 2026-08-28 . Reviewed by Sunswell engineering team
×
