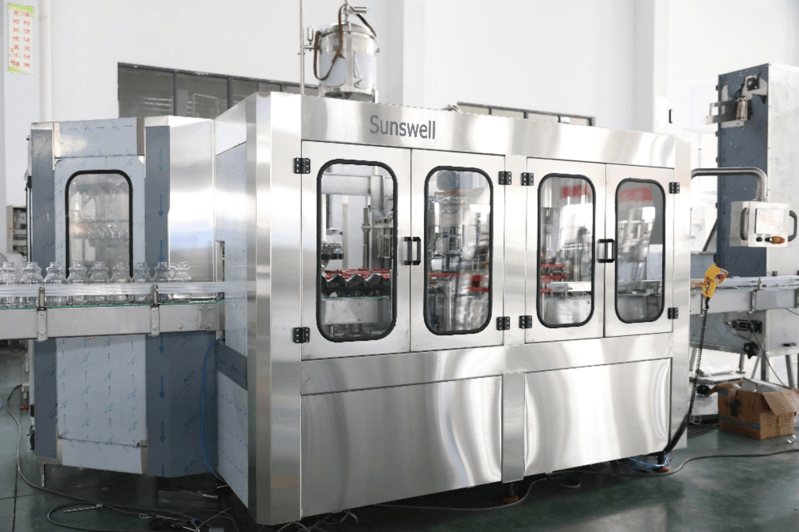

BSXGF Series Glass Bottle Filling Machine for Vinegar and Soy Sauce

Application: vinegar and soy sauce etc.

Containers applied for: glass bottle

Filling system: gravity hot filling by mechanical

Production capacity: 3,000BPH – 36,000BPH (500ml)

3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of hot filling for soy sauce, fish sauce, vinegar and high corrosive products, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy. The machine suits both glass and PET bottles with ROPP cap.

Availability:
Quantity:

Equipment Compositions and Functions


Bottle block cylinder & Infeed Screw

05-06 Glass Bottle Filler for Vinegar and Soy Sauce681

Bottle block cylinder is used to prevent the bottle go into the filling equipment during normal running and default .It can be operated manually and automatically. If there is not enough bottle supply, the bottle block cylinder controls the starwheel and reduces the running speed as well.


Bottle infeed screw drive is composed by the 2 level reducer, the 1st level is the cone gear drive, for driving the bottle in screw and bottle in chain, the 2nd level is bottle in screw drive box, for adjusting the bottle infeed screw and position adjustment during bottle shape changing .


Rinser

05-06 Glass Bottle Filler for Vinegar and Soy Sauce1274

Composed by Dispenser, rinsing clamp, rinsing water recycle, there is a fixed rinsing time, the empty bottle was held by a fixed track, rinsing, drying, then reaches the cleaning purpose.



Filler

05-06 Glass Bottle Filler for Vinegar and Soy Sauce1474


  • Rotary wheel fully made of stainless steel SUS 304.

  • Gravity filling method.

  • Product cylinder and filling valves are made of 304.

  • Filling valves are reasonably structured with accurate filling.

  • Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

  • Level of cylinder is controlled with float-ball.

  • Filler is driven through gears inside the machine frame.



Twist-off cap capper

05-06 Glass Bottle Filler for Vinegar and Soy Sauce1914

Twist-off cap capper is composed by gear, capping device, anti rotate pole and elevated device. The drive is passed through transfer gear to the capper gear, and the elevated pole pass it to the capper.The up and down movement is done by capping cam.

When main shaft and gear rotate under the capping head, while two screw rollers and anti burglary roller complete capping under self rotation. If there is no cap, the safety piston will stop roller mesh. Adjust the nut can adjust the pressure.


Discharge Starwheel

  • Nylon starwheel and conveyor belt work together to discharge bottles.

  • Equipped with bottle jam protection device.


05-06 Glass Bottle Filler for Vinegar and Soy Sauce2551


Discharge Conveyor

  • Driving motor is frequency inverted to synchronize with the filling line to prevent bottles from falling.

  • Discharge conveyor is equipped with photocell switch to slow down and stop filling line in case of fallen bottles.



Machine Frame

  • The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated. The machine frame is wrapped with stainless steel sheet.

  • Driving system of the 3-in-1 Unit is positioned under the machine table. One main motor provides driving power via gear transmission.

  • The gear transmission system is an interleaved arrangement of steel gears and nylon gears.

  • The output shaft of the main motor is equipped overload protection to secure machine safety.



Electrical control system

The electrical cabinet is made of plated carbon steel. From bottle infeed to bottle discharge, a PLC controls the fully automatic operation of the 3-in-1 Unit.


Main Configuration


  • Product storage tank and filling valve: Stainless steel 304

  • Material of rotary tray and machine platform of rinser and filler: Stainless steel 304

  • Touch screen: Pro-face

  • PLC program controller: Mitsubishi

  • Inverter: Mitsubishi

  • Photoelectrical controller: Leuze

  • Proximity switch: Leuze

  • Other electrical components: Siemens, Schneider

  • Pneumatic component: Airtac

  • Main motor: ABB
