Mechanical Hotfill Filling Machine for Glass Bottle Juice & Tea Drinks

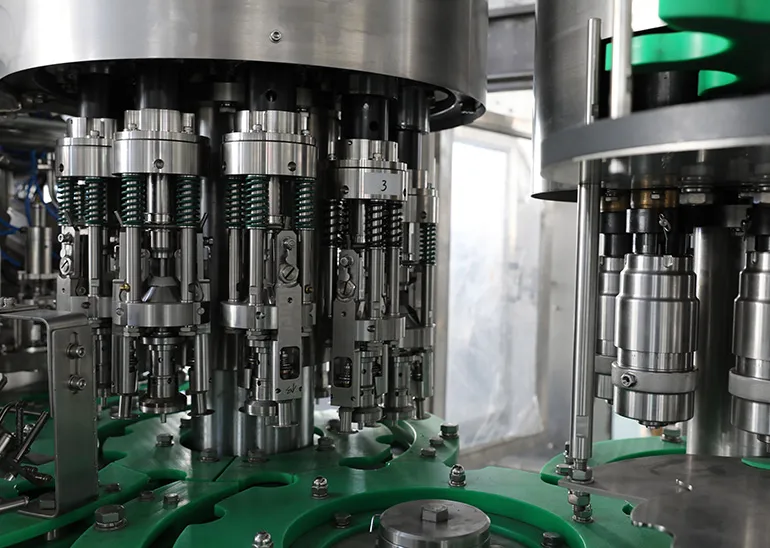

3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of hot filling for soy sauce, fish sauce, vinegar and high corrosive products, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy. The machine suits both glass and PET bottles with ROPP cap.
- Application
- water, juice, tea, energy drinks, milk, vitamin drinks, liquor, functional beverage
- Suitable for
- glass or aluminum bottle
- Filling system
- Gravity hotfill
- Filling speed
- 2,000 - 48,000BPH (330ml)
- Describe
- Features
- Structure
- Electrical Control System
- Specification
Describe
Features
-

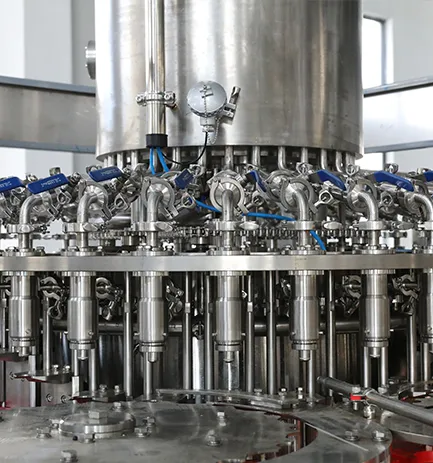

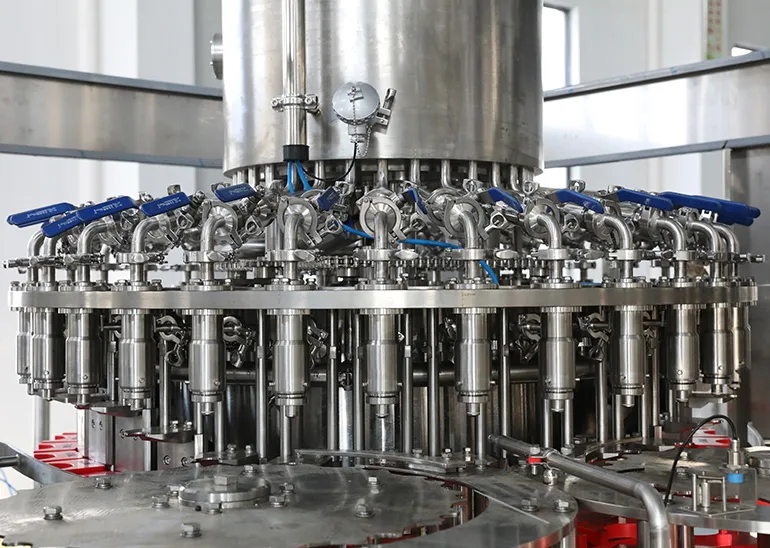

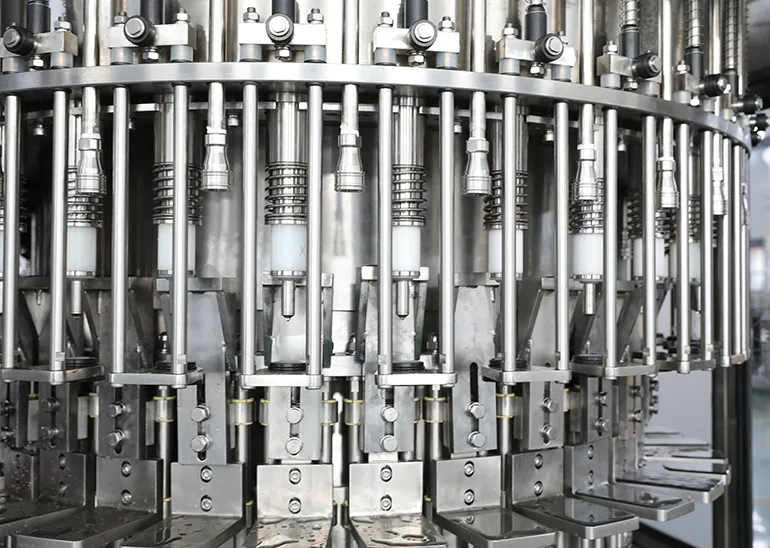

3.Filler
Rotary wheel fully made of stainless steel SUS 304.
Gravity filling method.
Product cylinder and filling valves are made of 304.

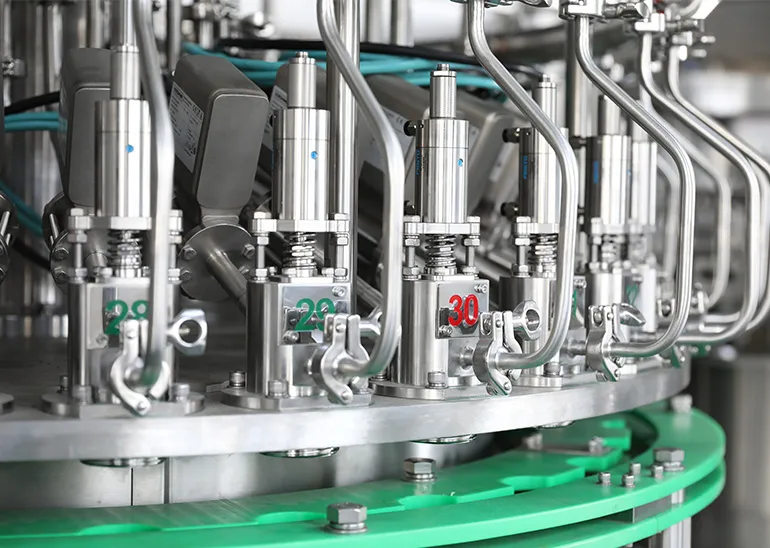

Filling valves are reasonably structured with accurate filling.
Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
Level of cylinder is controlled with float-ball.
Filler is driven through gears inside the machine frame.
-

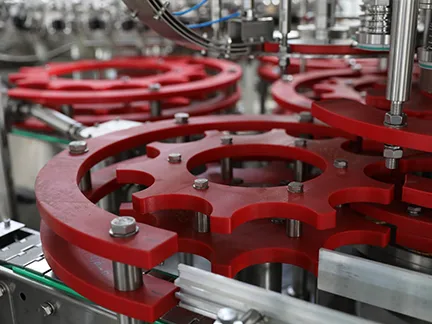

5.Discharge Starwheel
Nylon starwheel and conveyor belt work together to discharge bottles.
Equipped with bottle jam protection device.
-
6.Discharge Conveyor
Driving motor is frequency inverted to synchronize with the filling line to prevent bottles from falling.
Discharge conveyor is equipped with photocell switch to slow down and stop filling line in case of fallen bottles.
-
7.Machine Frame
The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated. The machine frame is wrapped with stainless steel sheet.
Driving system of the 3-in-1 Unit is positioned under the machine table. One main motor provides driving power via gear transmission.
The gear transmission system is an interleaved arrangement of steel gears and nylon gears.
The output shaft of the main motor is equipped overload protection to secure machine safety.
-
8.Discharge Conveyor
Driving motor is frequency inverted to synchronize with the filling line to prevent bottles from falling.
Discharge conveyor is equipped with photocell switch to slow down and stop filling line in case of fallen bottles..
Structure
-

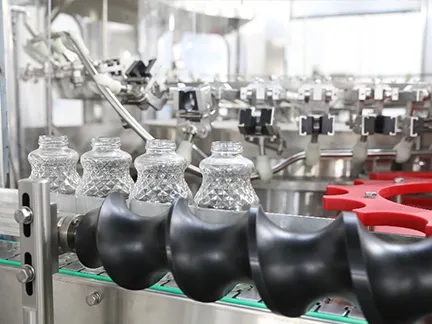

Bottle block cylinder & Infeed Screw
-

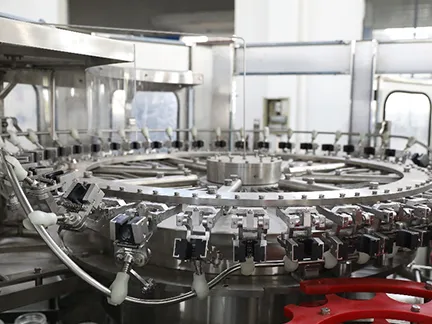

Rinser
-
Filler
-

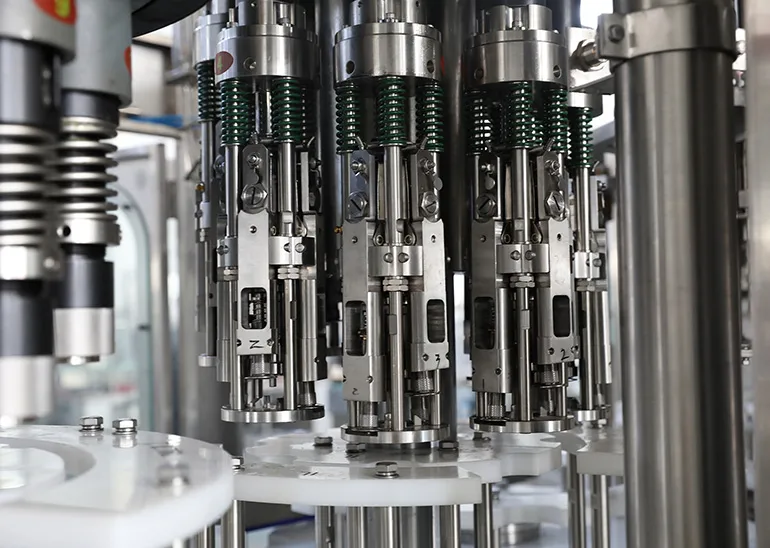

Twist-off cap capper
-
Discharge Starwheel
Electrical Control System
Specification
| System | Name | Brand | Origin |
|---|---|---|---|
| Transmission | Gear Motor | Sew | Germany |
| Servo Motor | Lenze | Germany | |
| Air Compressed Brake | Steki | Taiwan, China | |
| Torque Limiter | Steki | Germany | |
| Timing Belt (Seamless) | Rw | Italy | |
| Air Compressed Brake | Sit | Germany | |
| Key Bearing | Ina/Fag | Germany | |
| Slewing Bearing | Schmersal | Germany | |
| High Pressure Airway | (0.01Um) Precision Filter | Walker | UK |
| (1Um) Precision Filter | Walker | UK | |
| Proportional Valve | Lanny | Germany | |
| High Pressure Valve Unit | Eugen Seitz | Switzerland | |
| Safety valve | Goetze | Germany | |
| Dew-Point Instrument | GE | USA | |
| High Pressure Airway | Ionic Gas Control | Meech | UK |
