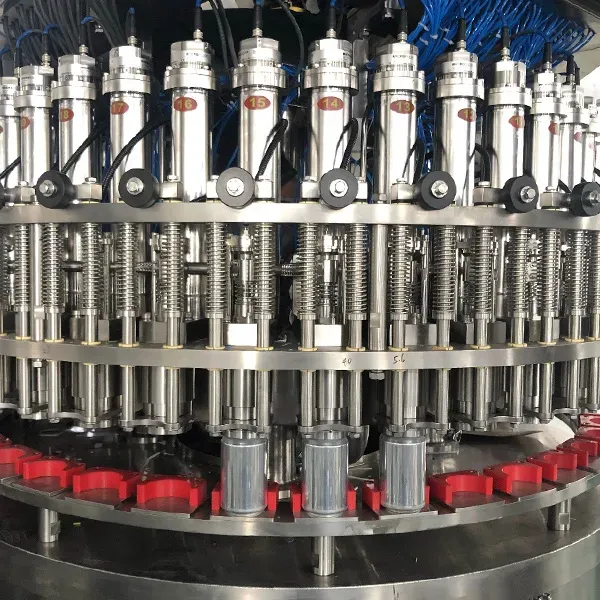

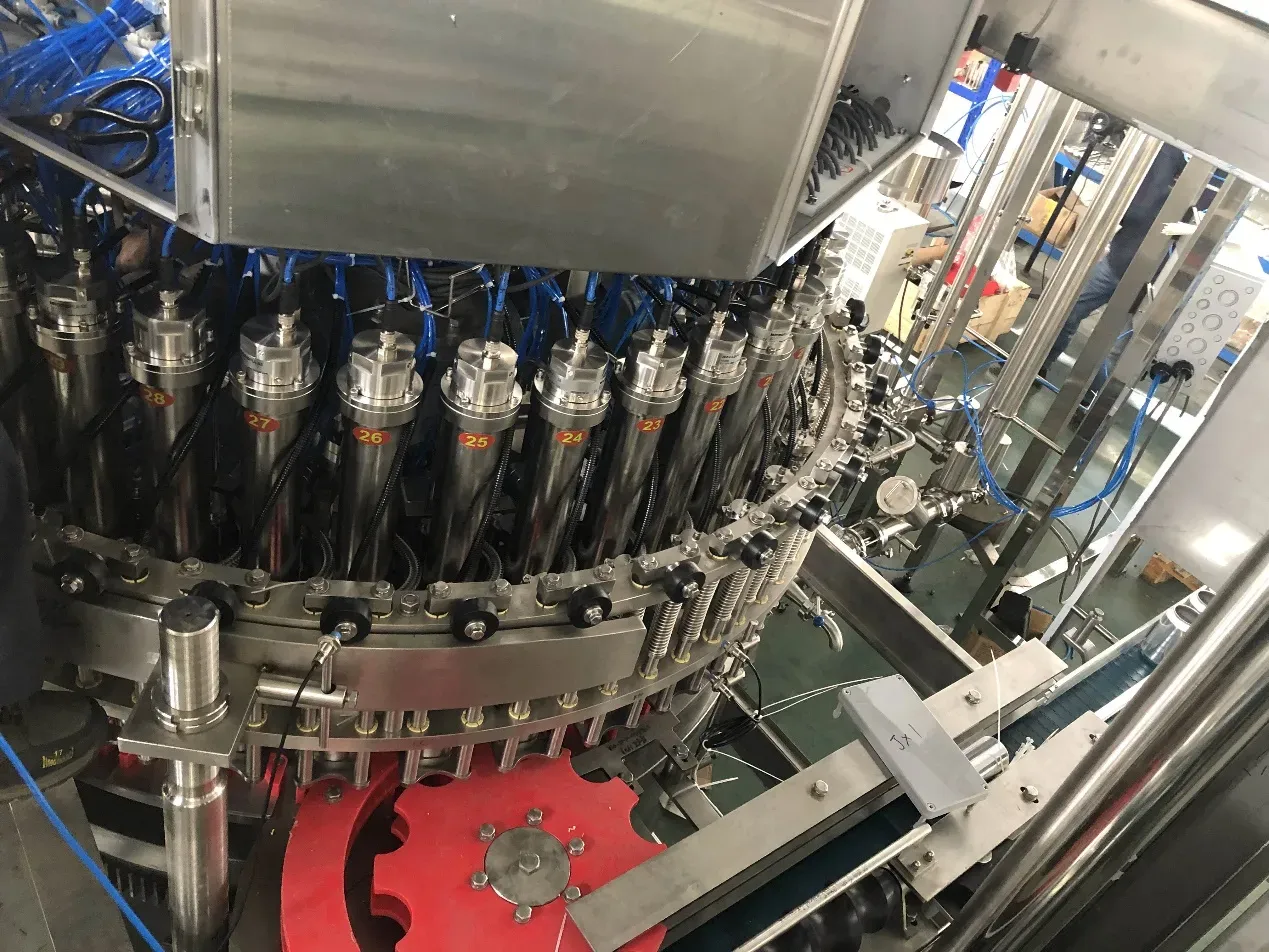

Volumetric Filler/Seamer with Electronic Float Valve For Aluminum Cans

Views: 4190 Author: Howie SUN Publish Time: Update Time:
A can line is rated in cans per hour because the seamer sets the pace, and the seam, not the filler, is where the rating is usually lost. The higher the pressure of the cleaning cup, the better the sealing performance, easy installation and good sealing performance.

Volumetric Filler/Seamer with Electronic Float Valve For Aluminum Cans

Key facts at a glance
Filling principleIsobaric for beer and CSD, volumetric for juice and tea
Rated outputUp to 25,000 CPH
Can sizesStandard 250, 330 and 500 ml
SeamingRoller seamer integrated with the filler
OptionsHot fill for juice and tea, nitrogen dosing
Key controlFill level, seam tightness, dissolved oxygen

Why is can filling measured in CPH and not BPH?

A can line is counted in cans per hour because the container is the unit the seamer closes. CPH and BPH cannot be converted without the fill volume, and the downstream packer is sized in cases per hour. Comparing a 24,000 CPH can line with a 24,000 BPH bottle line compares two different plants.

What does the seamer have to get right?

A can is sealed by two rolling operations that fold the can flange and the end together. Seam thickness, seam height and overlap are checked by tear-down at a fixed interval, not by eye. A seam that looks right and measures wrong leaks three weeks later, in the customer warehouse rather than on your line.

ProductFilling principleCritical measurement
BeerIsobaric, coldDissolved oxygen and seam tightness
CSD and sodaIsobaric, coldCO2 retention and fill height
Juice and teaVolumetric or hot fillFill temperature and seam integrity
Energy drinksIsobaric or volumetricDissolved oxygen and closure

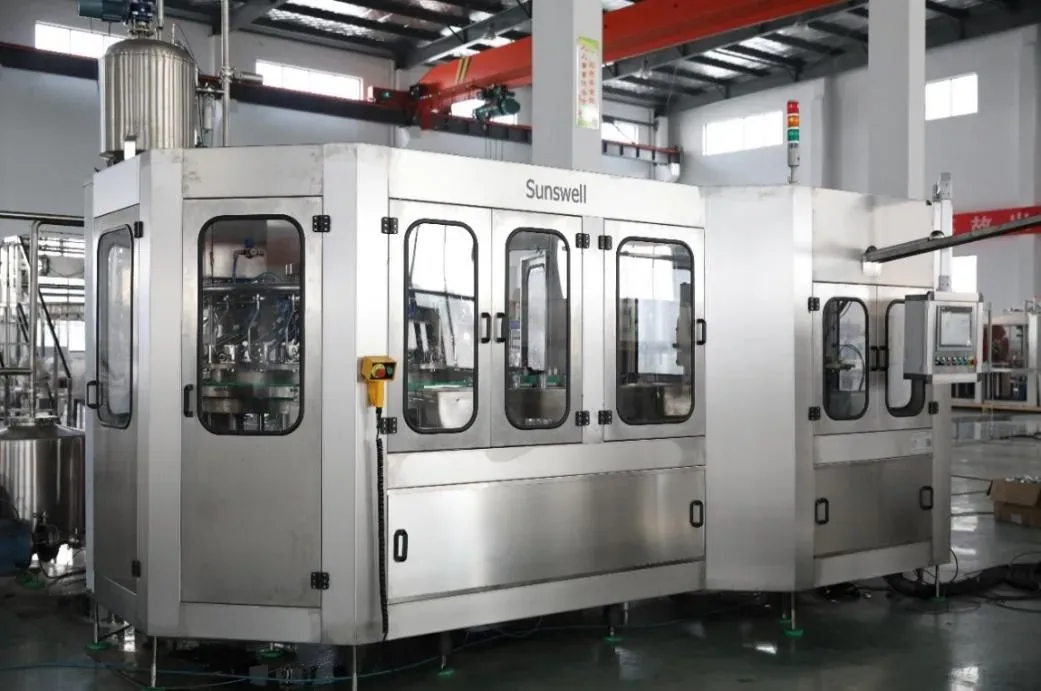

The Aluminum Can Filling Machine for Beer, Carbonated Soft Drink is the reference unit for this configuration.

What changes between a beer can and a juice can?

Beer and CSD run isobaric, cold, under counter-pressure. Juice and tea often run hot fill or a volumetric fill with a downstream pasteuriser. The can is the same format; the filler, the valve set and the temperature control are not, so one can line rarely covers both without a second specification.

A different bottle format means a different unit; see the Aluminum Can Filling Machine for Hotfill Juice and Tea.

What does a hot-fill can line need that a cold line does not?

A heated product path, a fill temperature control loop and a cooling tunnel after seaming. The can itself tolerates the heat; the lining and the product do not always. The temperature window belongs to the product specification.

The same question is worked through from another angle in How to Maintain Aluminum Can Fillers for Optimal Performance.

How to read the numbers. Rated capacity in this note follows the product specification range, not a factory acceptance test. Seamer stops, can-size changeover and downstream accumulation sit outside a rated CPH, so plan on 0.65-0.85.

Frequently asked questions

What is dissolved oxygen and why does it matter?

It is the oxygen left in the product after filling. It drives oxidation, off-flavour and haze. Beer and juice have tight limits, and the measurement belongs in the acceptance protocol, taken from the finished can.

Does a can line need nitrogen dosing?

It is common for beer, juice and some CSD, where headspace oxygen has to be pushed down. It is an option with a consumable cost, so it belongs in the utility and consumable schedule, not in the base price.

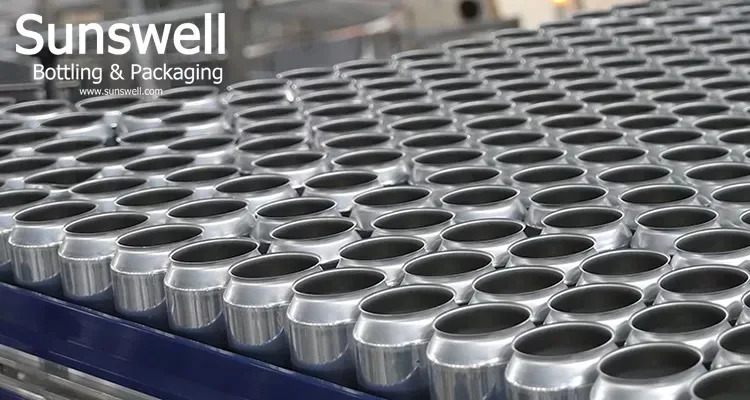

Why do cans dent on the conveyor?

Usually conveyor pressure or a jam at a transfer, not the can quality. Air conveyor pressure, guide rail gaps and accumulation length are the three settings to check first.

Does a 250 ml can run faster than a 500 ml can?

Yes, at the same filler, because the fill volume per cycle is smaller. The seamer and the packer still have to carry the higher can rate, which is why the line rating is set on cans per hour, not litres.

Key takeaways
  1. CPH and BPH are different units; never compare them directly.
  2. The seamer, not the filler, is where a can line loses its rating.
  3. Beer and juice cans share a format, not a filling specification.
  4. The seamer transfer is the most alignment-sensitive point on a can line.
About the author
Written by the Sunswell engineering team - led by Howie SUN, Founder & CEO, with 14 years in filling and blow-moulding equipment R&D and turnkey project delivery across 71+ countries.
Last reviewed: 2026-08-28 . Reviewed by Sunswell engineering team
×
