Aluminum Can Filling Machine for Beer, Carbonated Soft Drinks and Soda Water

Main features

1. Wholly sealed widow structure which is beautiful, concise, easy and highly operated;

2. Cycling tank design with precision polishing inside;

3. High precision and large flow rate filling valves to meet productive requirement;

4. Specially designed roller structure which is easy to be adjusted, locked and ensure sealing function;

5. Friendly and convenient operating panel with high expansibility.

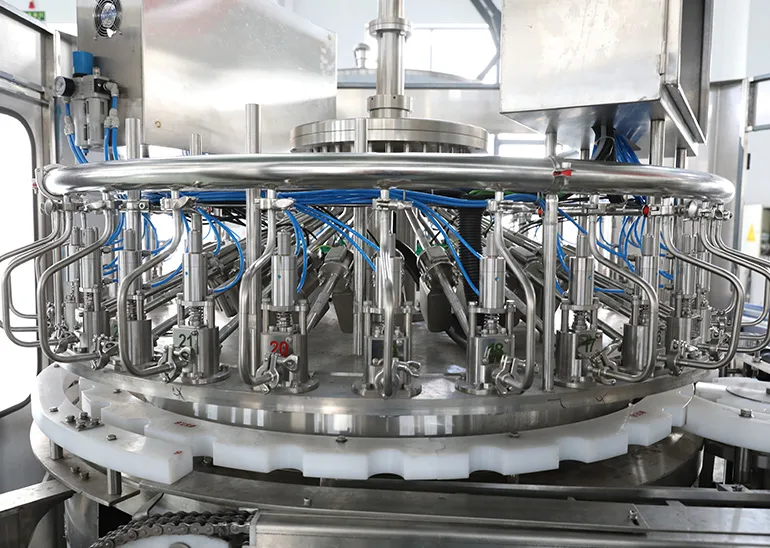

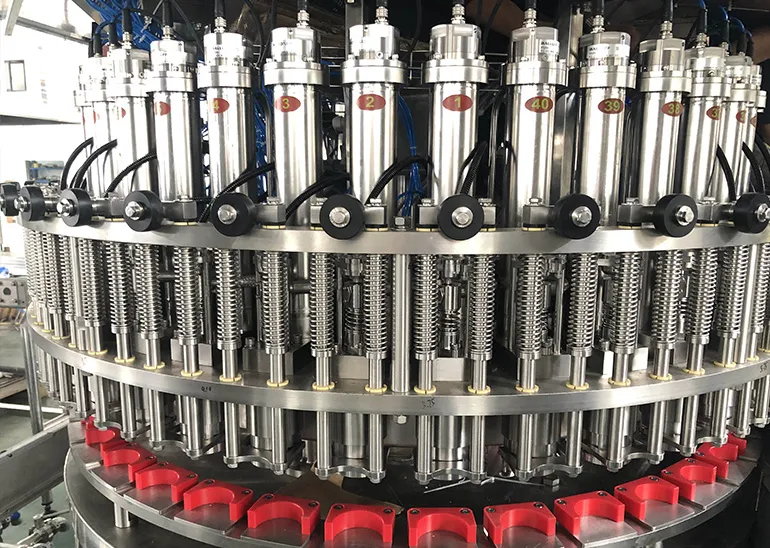

6. The filling valve adopts high precision mechanism valve, fast speed filling, high precision liquid level.

7. The filling vat adopts SUS304 material designed sealing vat, to achieve constant pressure filling.

8. The flow rate of the filling valve>125ml/s.

9. Main transmission adopts toothed belt and gearbox open-type transmission assemblies, high efficiency, low noise.

10. The main drive adopts step-less speed change for frequency conversion, the whole machine adopts PLC control; the capping machine and filling machine adopt coupling joint, to ensure synchronization of two machines.

11. With filling with can, no filling without can.

12. The filling manner is constant pressure filling, with fast filling speed and stable action.

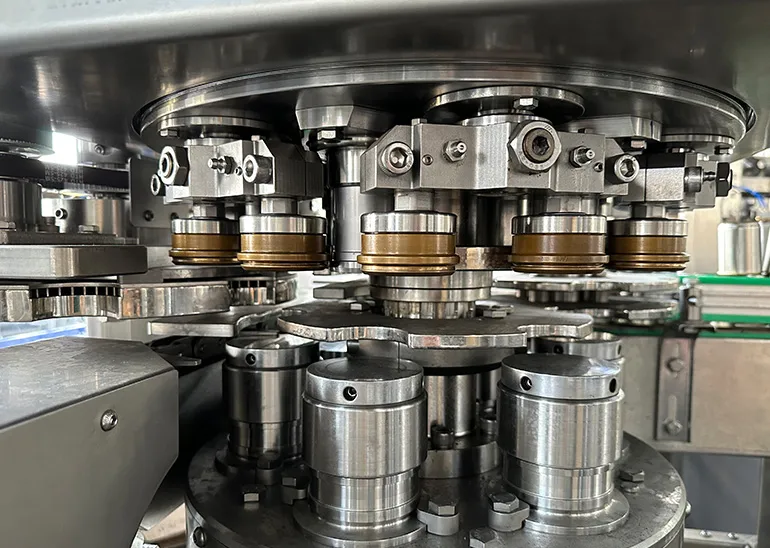

13. Seaming trolley adopts high hardness alloy steel quench (HRC＞62), capping curve adopts projection grinder precision machining, to ensure the quality of capping.

14. With capping with can, no capping without can control system, to ensure the normal running of the machine.

15. With CIP automatic rinsing function.

16. With centralized lubrication system.

Working procedure

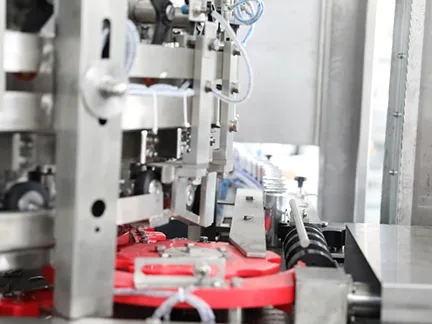

The cans are divided into cans by the feed screw through the conveyor chain, divided into suitable spacings, and then transferred by the transition dial wheel to the filling and sealing machine of the filling machine. The cans that enter the filling machine are held upright by the canister guide guarding the can body. Filling adopts non-contact flow meter filling method. The cans coming out from the filling machine are infed in a free order at the beginning and through a period of chain acceleration to make the tank reach the correct pitch feed tank side belts, when each can through the can to detect the proximity switch, the proximity switch is actuated. At this time, the cylinder makes the lid cutter on the lid retract, a can lid is removed from the lid stack, and is carried by the lid transfer turret under the capping head, before the cap can reach the capping device together with the cap, the cap can be accurately positioned through the cap transfer and the sealing star wheel swivel, and then when the cap arrives, the cap supporting platform accurately lifts the can to the cap’s position.

At this moment, the lid is pushed by the lid to press the lid onto the top of the tank. When the can is clamped between the tray can holder and the capping head, the lids start to rotate together, and the capping operation begins. Two flanging rollers complete the crimping.

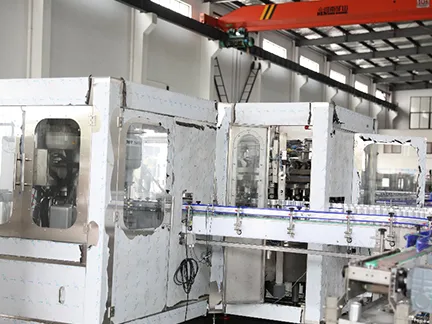

The lid rod pushes the can away from the capping head, and at the same time, the tank star wheel pushes the sealed cans out of the can sealer and puts the cans onto the conveyor belt of the can table.
