How to Integrate Palletizers with Labeling Machines

Views: 1517 Author: Howie SUN Publish Time: Update Time:
Label choice is a cost-per-unit decision before it is a design decision: sleeve, OPP wrap and sticker differ in film cost, speed and changeover.
Key facts at a glance
TypesSleeve, hot melt glue OPP, rotary sticker, self-adhesive
SpeedMatched to the filler, with an accumulator between
Key controlLabel position, glue pattern, shrinkage, adhesion
Contact materialOPP film, PVC or PETG sleeve, paper sticker
Key decisionFull sleeve or partial wrap
Line positionAfter filling, before packing

Sleeve, OPP or sticker: what decides the choice?

A full-body sleeve covers the whole bottle and gives the most design freedom, at the cost of film and a shrink tunnel. An OPP wrap-around label is the cheapest per unit at high speed. A sticker suits short runs and curved surfaces where a wrap is impractical.

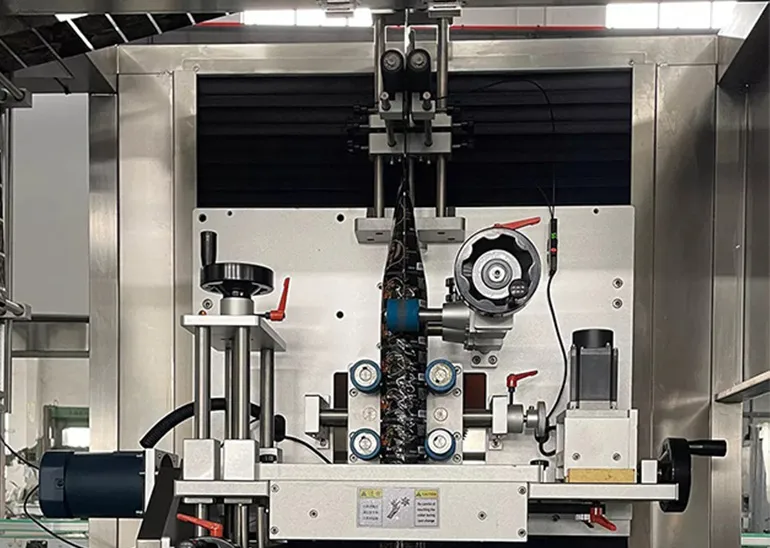

What does a shrink sleeve need to look right?

A consistent shrink needs the right film direction, a controlled tunnel temperature profile and a bottle that does not deform. Steam tunnels give a softer shrink than hot air and suit thin-wall bottles. A wrinkle at the shoulder is usually a film or temperature issue, not a speed issue.

Label typeCost per unitBest for
OPP wrap-aroundLowest at volumeHigh-speed round bottles
Full-body sleeveHigher film costFull coverage and shaped bottles
Self-adhesive stickerMiddleShort runs and flat or curved panels
Paper label with glueLow material, slowerGlass bottles and craft products

The unit behind this configuration is the Rotary Sticker Labeling.

How much glue does an OPP labeller use?

Hot melt glue is applied at the leading and trailing edge and at the seam. The pattern, the pot temperature and the nozzle condition decide how much is used and how clean the bottle looks. Glue strings and smears are the usual complaint, and they come from temperature and nozzle wear.

Site requirements, air and power consumption sit with the Sleeve Labeling.

Where does the labeller sit in the line?

After the filler and before the packer, normally with an accumulator on each side. The labeller is the most frequent short-stop on many lines, so the accumulator size in front of it decides whether a label roll change reaches the filler or not.

The same question is worked through from another angle in How Labeling Accuracy Impacts Consumer Trust.

How to read the numbers. Capacity figures are the reference ranges on the product specification. A rated label rate assumes one label and one roll length; roll changes sit outside it, so size on 0.65-0.85.

Frequently asked questions

Can one labeller run sleeve and OPP?

Not without a change of the applicator. Sleeve and wrap-around are different machines with different film paths, so a plant running both normally has two labellers.

How often should glue nozzles be cleaned?

On a fixed production interval set by the glue supplier and the plant, and immediately after any stop long enough for the glue to cure. A clogged nozzle shows as a missing glue line and a label that lifts in the pack.

Can a labeller apply a neck band and a body label?

With two applicators or a combined unit, yes. They are separate stations with separate film paths, so the line needs the space and the changeover time for both.

Why do labels lift at the seam?

Usually too little glue, a cold bottle, or a seam pressed before the glue sets. Check the glue pattern and the bottle temperature before changing the speed.

Key takeaways
  1. Label type is a cost-per-unit decision before it is a design decision.
  2. Sleeve quality is a tunnel profile and film direction question.
  3. The accumulator in front of the labeller protects the filler.
  4. Perforation, tension and tunnel temperature act together.
About the author
Written by the Sunswell engineering team - led by Howie SUN, Founder & CEO, with 14 years in filling and blow-moulding equipment R&D and turnkey project delivery across 71+ countries.
Last reviewed: 2026-08-28 . Reviewed by Sunswell engineering team
×
