Top 6 Features to Look for in an Automatic Water Filling Machine

Views: 4681 Author: Howie SUN Publish Time: Update Time:
A bottle water line is treatment, blowing, filling, capping and packing in one chain, and its real output is set by the slowest station in that chain rather than by the filler nameplate. This level of control not only protects product safety but also supports compliance with food safety certifications like HACCP, ISO 22000, or FDA regulations.

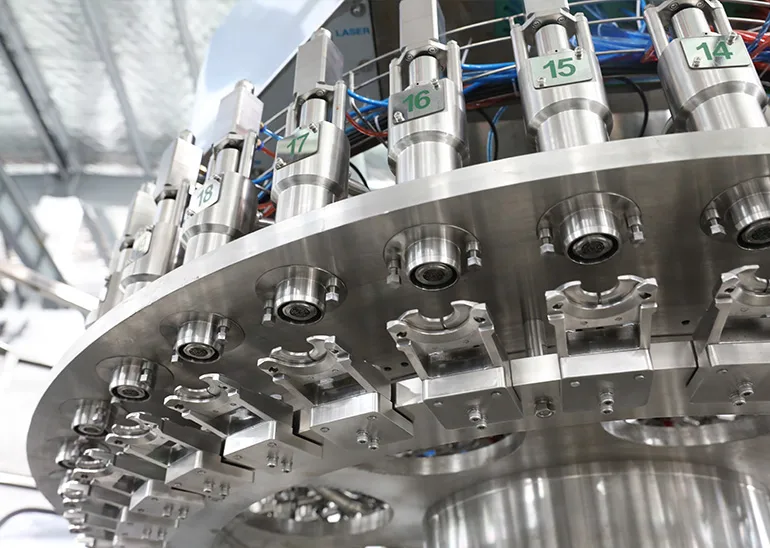

Volumetric Filling Machine for Still Water

Key facts at a glance
Where it fitsStill water, RO water, mineral water
Filling methodGravity or volumetric valve
Capacity range5,000-48,000 BPH at 500 ml
Container range200 ml to 16 L, by configuration
MaterialSUS 304 product contact, CIP-ready
Line scopeTreatment, blowing, filling, capping, labelling, packing

Gravity, volumetric or isobaric: which filling system fits?

Gravity filling holds a level in a rigid bottle and costs least per valve. Volumetric filling doses a fixed volume into a chamber, so it holds accuracy across 3 L, 5 L and 10 L formats without changing the head. Isobaric filling is for carbonated product only, because it keeps CO2 in solution under counter-pressure. A still water line never needs it.

Volumetric systems typically rely on magnetic or mass flow meters, whereas gravity or pressure filling machines depend on consistent tank pressure and timing.

What changes when the line moves from 500 ml to 5 L?

Above 2 L the fill time per valve grows faster than the valve count, so capacity per valve falls and the conveyor has to carry more mass. Handles, cap size and bottle rigidity also change. A 5 L line is usually specified around that format rather than shared with a 500 ml line.

Filling principleBest forWatch out for
GravityStill water, one rigid bottle sizeThin-wall bottles deform under head pressure
Volumetric valve3-15 L and mixed formatsValve wear shows as slow drift, not a sudden error
IsobaricCarbonated water onlyNeeds counter-pressure, so slower per valve
Load cellOil and high-value liquidSlower cycle, higher cost per valve

The unit behind this configuration is the Blow-fill-cap Combibloc for Still Water.

What does a small 2,000-6,000 BPH line give up?

A small line gives up automation, not quality. Manual or semi-automatic packing, fewer accumulation buffers, and a simpler CIP usually follow. What it should not give up is the filling valve and the capping head, because those two decide whether the product is saleable.

High-end systems offer programmable CIP routines, automated valve switching, and real-time monitoring of temperature and flow.

For the same duty in another bottle format, the Gravity Filling Machine for Still Water is specified separately.

Does bottle lightweighting change the filler?

A lighter bottle is less rigid, so it deforms more under the filling head and grips differently in the star wheels. The filler may need a different neck handling and a lower contact pressure. Lightweighting is a bottle project that reaches into the filling line.

Modern automatic machines equipped with servo adjustments and saved configurations can reduce that time to under 10 minutes, depending on the complexity of the bottle and cap switch.

The same question is worked through from another angle in How to Choose the Right Water Filling Machine for.

What makes fill accuracy drift during a shift?

Temperature, valve wear and bottle variation, in that order. Water is less sensitive than oil, but a warm product foams more and a worn valve closes late. Weighing a sample every few hours catches the drift before it reaches the customer.

This level of control not only protects product safety but also supports compliance with food safety certifications like HACCP, ISO 22000, or FDA regulations.

How to read the numbers. All capacity numbers here are the ranges published in the product specification. Rated BPH assumes one format and no cleaning stops. Plan on a factor of 0.65-0.85 to cover changeover, CIP and downstream jams.

Frequently asked questions

How many bottles per minute is 12,000 BPH?

200 bottles per minute. Divide BPH by 60. A 24,000 BPH line runs at 400 bottles per minute, which is why filler and packer have to be matched rather than bought separately.

What water treatment does a bottled water line need?

It follows the raw water analysis, not a standard package. Surface water usually needs multi-media filtration, RO and UV or ozone. Low-hardness municipal water may need only carbon filtration and disinfection.

How long does installation and commissioning take?

For a complete line with blowing, filling, labelling and packing, plan several weeks on site after arrival, plus operator training. Civil work and utility readiness are the usual delay, not the machinery.

Can a still water line be converted to carbonated later?

Not on the same filler. Carbonation needs isobaric valves, a CO2 dosing and mixing unit, and a different bowl. A combiblock can carry both valve sets, but they are separate specifications, not a field conversion.

What is the acceptable fill level tolerance for water?

Commercial practice is a stated band per bottle size, typically checked by weight at the filler outlet. The band belongs in the acceptance protocol. A line without a written tolerance will argue about it at commissioning.

Key takeaways
  1. Size with a production factor of 0.65-0.85, never 1.0.
  2. Change parts and filling system are settled by neck finish and bottle rigidity, well before BPH.
  3. Put CIP and changeover into the capacity calculation at the start, not after the line is running.
  4. Five-litre and 500 ml formats are two specifications, not two settings on one machine.
About the author
Written by the Sunswell engineering team - led by Howie SUN, Founder & CEO, with 14 years in filling and blow-moulding equipment R&D and turnkey project delivery across 71+ countries.
Last reviewed: 2026-08-28 . Reviewed by Sunswell engineering team
×
