12000BPH Carbonated Bottling Line to Russia

Views: 4350 Author: Howie SUN Publish Time: Update Time:
Isobaric filling is the only way to put a carbonated drink into a bottle without losing the gas, which is why a still water filler cannot be converted by adding a CO2 unit.

12000BPH Carbonated Bottling Line to Russia

Key facts at a glance
Filling methodIsobaric, CO2 counter-pressure
Capacity12,000-36,000 BPH at 0.2-2 L
ContainersPET bottle, glass bottle, aluminum can
CO2 handlingPre-pressurisation and return pipe, no venting
ValvesMechanical, semi-electric or volumetric

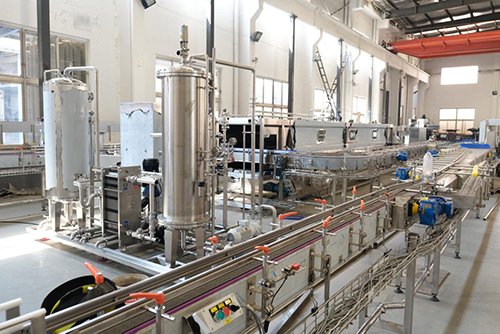

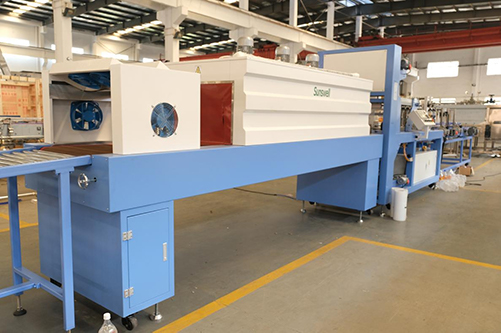

Line scopeWater treatment, syrup mixing, carbonation, filler, pack

Why does carbonated product need isobaric filling?

A carbonated drink is a saturated solution held in equilibrium by pressure and temperature. If the filler exposes it to atmosphere, CO2 leaves the liquid as foam and the fill level collapses. Isobaric filling pressurises the bottle to the bowl pressure first, fills under counter-pressure, then releases in a controlled ramp.

What decides CO2 retention on the line?

Four points decide it: the carbonation level set at the mixer, the product temperature at the filler, the pressure profile during fill, and the time between capping and packing. A line that holds 4.0 volumes at the mixer can deliver 3.4 in the bottle if the filler bowl runs warm or the capping head leaks.

Valve typeSettingBest for
MechanicalFixed cam profileSingle product, long runs
Semi-electricSignal-timed open and closeRecipe changes within one product family
VolumetricChamber dosePressure or temperature drift during the shift
Isobaric + volumetricChamber dose under counter-pressureHigh CO2 with tight fill accuracy

For the same duty in another bottle format, the CSD & Sparkling Water by Mechanical Filler is specified separately.

Mechanical, semi-electric or volumetric valves: what is the difference?

Mechanical valves open and close on a fixed cam profile and are the most forgiving on maintenance. Semi-electric valves use a signal to open and close, so the fill window can be set per recipe. Volumetric valves dose a chamber and hold accuracy when bottle pressure or product temperature drifts during the shift.

A different bottle format means a different unit; see the Isobaric Filling Machine for CSD and Sparkling Water.

Where does foam actually come from?

Foam is usually a temperature or pressure problem, not a valve problem. Warm product, a fast pressure release at the end of fill, a worn seal that lets gas bypass, or a dirty return pipe all show up as foam at the same place. Check the product temperature and the pressure ramp before touching the valves.

The same question is worked through from another angle in 12000BPH(1L) CSD Line Successfully Installed in Kazakhstan.

How to read the numbers. Where a BPH appears below it is the specification range, not a measured rate. A rated BPH is measured at one CO2 level and one temperature; format changes and CIP sit outside it, so size on 0.65-0.85.

Frequently asked questions

How many cans per hour is 24,000 CPH?

400 cans per minute. CPH and BPH are different units and cannot be compared directly, because can and bottle formats carry different volumes and different downstream equipment.

What is the difference between 2.5 and 4.0 volumes of CO2?

The higher the volumes, the sharper the mouthfeel and the more pressure the package must hold. Higher carbonation also needs a colder fill and a tighter pressure ramp, so it reduces practical line speed.

Can a CSD line fill glass bottles?

Yes, with a different infeed, spacing and capping set. Glass needs mechanical spacing rather than an air conveyor, and the filler runs at 4,000-20,000 BPH on glass against 12,000-36,000 BPH on PET.

What causes a foaming spike at start-up?

Warm product and an empty bowl. The first bottles see the largest pressure step. A short recirculation before production and a controlled bowl cool-down remove most of it.

Key takeaways
  1. Carbonation is a pressure and temperature problem before it is a valve problem.
  2. Judge a CSD line on CO2 retention in the filled bottle, not on the mixer set point.
  3. Warm product loses CO2 before the filler can dose it.
  4. A can line and a PET line share the valve principle, not the closing equipment.
About the author
Written by the Sunswell engineering team - led by Howie SUN, Founder & CEO, with 14 years in filling and blow-moulding equipment R&D and turnkey project delivery across 71+ countries.
Last reviewed: 2026-08-28 . Reviewed by Sunswell engineering team
×
