| Filling system | Isobaric, CO2 counter-pressure |
| Capacity range | 12,000-36,000 BPH at 0.2-2 L |
| Containers | PET bottle, glass bottle, aluminum can |
| CO2 handling | Pre-pressurisation and return pipe, no venting |
| Valves | Mechanical, semi-electric or volumetric |
| Line scope | Water treatment, syrup mixing, carbonation, filler, pack |

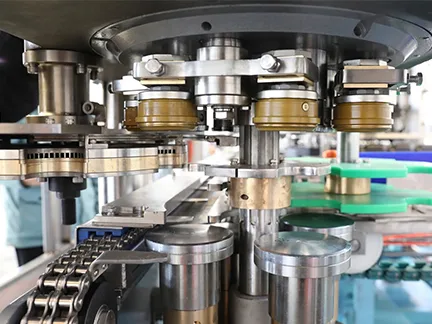

A carbonated drink is a saturated solution held in equilibrium by pressure and temperature. If the filler exposes it to atmosphere, CO2 leaves the liquid as foam and the fill level collapses. Isobaric filling pressurises the bottle to the bowl pressure first, fills under counter-pressure, then releases in a controlled ramp.
Isobaric filling technology helps minimize foam formation by carefully managing the pressure within the bottle.
Size the filler on peak shift demand with a production factor of 0.65-0.85, then size the CO2 supply on average consumption, not peak. A CO2 plant built for the filler nameplate runs partly loaded for most of the year and loses more gas to vaporisation than the line saves in speed.
By maintaining consistent CO2 levels, preventing foaming, and improving production efficiency, these machines play a critical role in ensuring product quality and operational success.
| Valve type | Setting | Best for |
|---|---|---|
| Mechanical | Fixed cam profile | Single product, long runs |
| Semi-electric | Signal-timed open and close | Recipe changes within one product family |
| Volumetric | Chamber dose | Pressure or temperature drift during the shift |
| Isobaric + volumetric | Chamber dose under counter-pressure | High CO2 with tight fill accuracy |
Rated output, change parts and services are listed on the CSD & Sparkling Water by Mechanical Filler page.
Syrup is proportioned and blended with treated water, then carbonated under pressure and temperature control. The ratio accuracy and the carbonation stability decide the product, and both are upstream of the filler. A filler cannot correct a drifting blend.
Isobaric filling machines have emerged as a preferred option for maintaining CO2 levels and preventing foaming, ensuring consistent carbonation levels in every bottle.
Where this becomes a line rather than a single machine, the Isobaric Filling Machine for CSD and Sparkling Water is the starting point.
The product circuit is cleaned on a fixed cycle, and the filler bowl is rinsed and sanitised before production. Residual cleaning chemical and residual water both affect taste and carbonation, so the final rinse is verified, not assumed.
The same question is worked through from another angle in Bottled Water vs CSD vs Juice: Which Segment Drives.
No. Carbonation needs isobaric valves under counter-pressure; still water runs gravity or volumetric. A combiblock can carry both valve sets, but they are specified separately and are not interchangeable at the push of a button.
It holds what the mixer sets and the temperature allows. Most CSD runs between 2.5 and 4.0 volumes, with the target set per product. Retention, not the mixer set point, is what the acceptance test should measure in the filled bottle.
400 cans per minute. CPH and BPH are different units and cannot be compared directly, because can and bottle formats carry different volumes and different downstream equipment.
Warm product and an empty bowl. The first bottles see the largest pressure step. A short recirculation before production and a controlled bowl cool-down remove most of it.
Country: Kazakhstan
Product: PET Bottled Carbonated Soft Drinks
Capacity: 12000BPH (1L)
Solution:Carbonated Drinks Production Line
Country: Syria
Product: Aluminum Canned Carbonated Soft Drinks
Capacity: 24000CPH (250ml)
Solution:Carbonated Drinks Production Line
