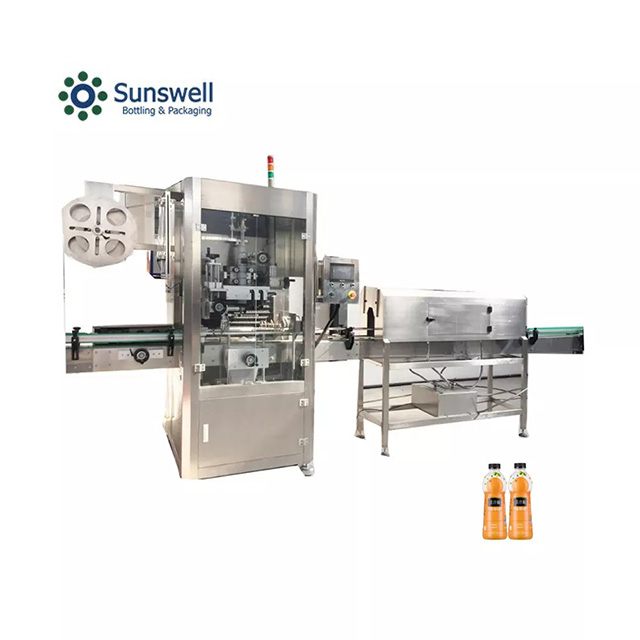

Bottle Pvc Shrink Film Heat Shrink Sleeves shrinker steam generator

Availability:
Quantity:
  • TB

  • Sunswell


Features

* Full stainless steel protective of main engine the machine is fully waterproof and stainless;

* Adjustable blade base: Unique cut off, double blade for long using life

* Positioning center guiding pole: stable label guiding and delivering;

* Screw rod of separate bottle: stable transportation of bottles;

* Label brushing set: more accuracy of label-casing precision;

* Label control sensor shelf: original creation tail surface and sensor are combined to improve the precision of cutting the material.

*Human touch screen: Auto Show cause of the malfunction, operating more humane

* Touch-screen: operation humanization

* Separated rack: easier operation, more stable for high-speed label transport


S-450 Sleeve Labeler Configurations:


* PLC controller: Omron

* Stepping motor: Taida

* Step drivers: PANASONIC

* Transducer: Japan KEYENCE

* Touch screen: Taiwan Weinview

图片2图片3

sleeve shrink wrapping machine and packaging equipment Technical Parameter:

Item

Parameters


1

Host machine

AC220V, 50/60HZ, 1.5-2KW, single-phase

2

Capacity

150BPM(faster if the label is shorter)

3

Diameter of bottle body

28mm-125mm

4

Length of label

30mm-250mm

5

Thickness of label

0.035mm-0.13mm

6

Material of label

PVC, PET, OPS

7

Size of equipment

L2000*W850*H2000mm

S-150/250 Label Sleever Technical Parameters:

* Size: 2100L*850W*2000H (mm)

* 2 meters conveyor belt include (motion and scraping belt are including)

* Gross weight: about 400KG

* Bottle diameter: 30-95mm(max)

* Bottle Height: 30-250mm

* Bottle type: round Bottle.

* Label length: 30~120 (mm)

* Label thickness: 0.03-0.13mm

* Paper pipe interior span: 5-10"

* Machine speed: 150/250BPM (subject to label length)

* Power: AC 3 phase, 380V

* Consumed power: 2.5KW


S-350 Label Sleever Technical Parameters:


* Size: 2000L*950W*2000H (mm)

* 2 meters conveyor belt (without motor)

* Gross weight: about 400KG

* Bottle diameter: 25-95mm(max)

* Bottle Height: 15-200mm

* Bottle type: round bottle

* Label length: 30-100mm (max)

* Label thickness: 0.03-0.08mm

* Paper pipe interior span: 3-10’’

* Machine speed: 300BPM (subject to label length)


* Power: AC 3¢380V

* Consumed power: 3KW

* Bottle type or big-and-small different, must change the center guide or infeed worm

* The label-casing machine controls the power of the conveyer belt in the machine

S-450 Label Sleever Technical Parameters:

* Size: 2000L*950W*2000H (mm)

* 2 meters conveyor belt include (motion and scraping belt are including)

* Gross weight: about 400KG

* Bottle diameter: 25-95mm (max)

* Bottle Height: 15-200mm

* Bottle type: round Bottle.

* Label length: 30~100 (mm)

* Label thickness: 0.030-0.080mm

* Paper pipe interior span: 3-10 ‘’

* Machine speed: 450BPM (subject to label length)

* Power: AC 3¢380V

* Consumed power: 3KW

RSS-2000 Steam Shrinker Technical Parameters:

* Size: 2000L*570W*900-1600H (mm)

* Power: AC 3¢380

* steam consumed capacity: 20-100 KG/H

* steam pressure: 0.15-0.4MPa

* Fan-power: 0.45-0.75KW

DZFZ-36KW Automatic Electric Steam Generator Technical Parameters:

* Rating: 36KW

* Power: 380V

* Consume power: 0.4Mpa

* Saturation steam temperature: 152°C

* Rating quanlity of steam occur: 45Kg/h

* Size: 1300L*700W*1000H (mm)



Bottle/Can Packing:


1 2 3 4

top of bottle

whole bottle

body to bottom

middle positioning

5


7
