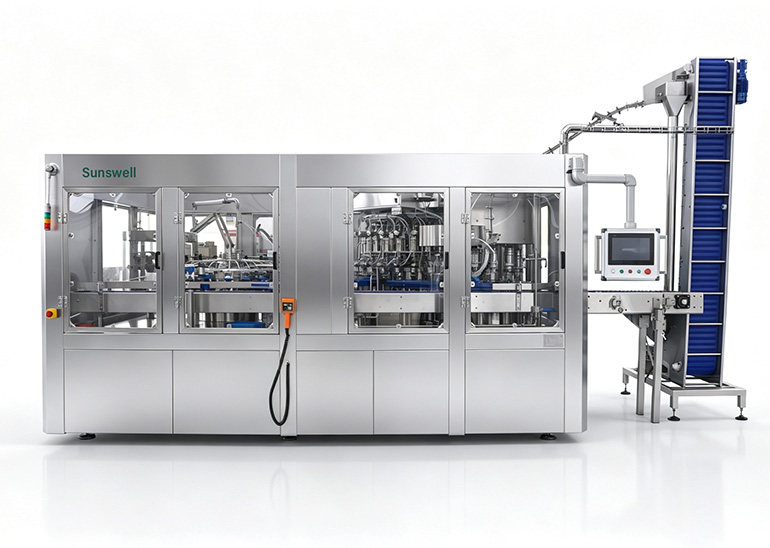

12000BPH 2oz Bottling Line for Shot
BZXGF series with servo piston cylinder is special for viscous liquids like juice pulp, paste, condensed milk, ketchup, chili, jam, honey, edible oil filling, capping and equipped with rotary transmission, PLC and frequency adjuster in speed. It is innovated and designed in the requirement of viscous liquids technics, which features reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for edible oil producers.
- Application
- functional beverage, tonic beverage, energy shot
- Suitable for
- PET,HDPE
- Filling system
- Piston by servo control
- Filling speed
- 10,000-36,000BPH(100ml)
- Describe
- Features
- Structure
- Electrical Control System
- Specification
Describe
Features
-

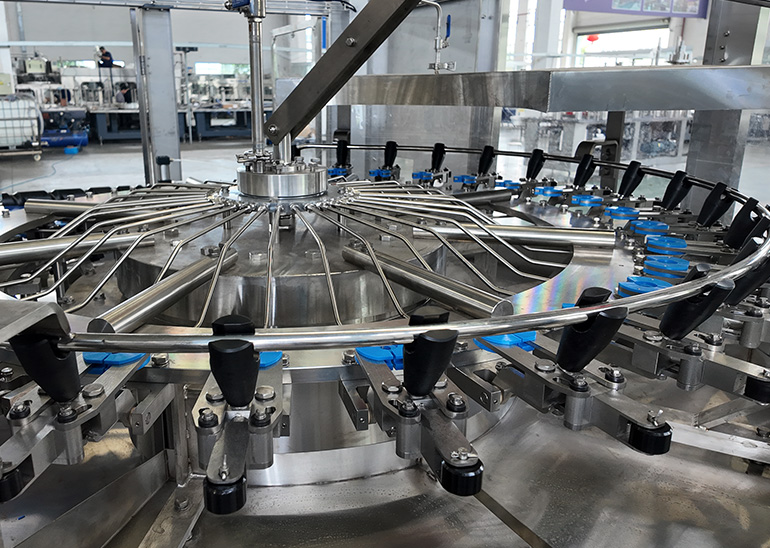

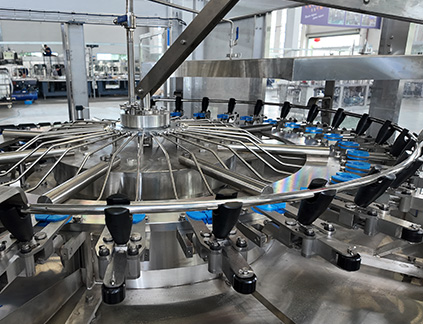

2.Rinser
Composed by Dispenser, rinsing clamp, rinsing water recycle, there is a fixed rinsing time, the empty bottle was held by a fixed track, rinsing, drying, then reaches the cleaning purpose.
-

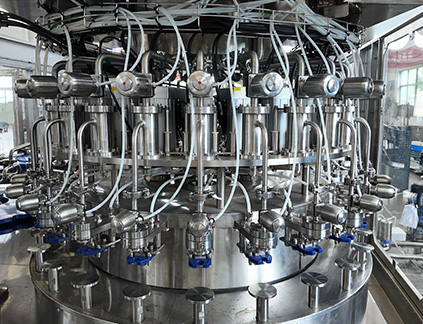

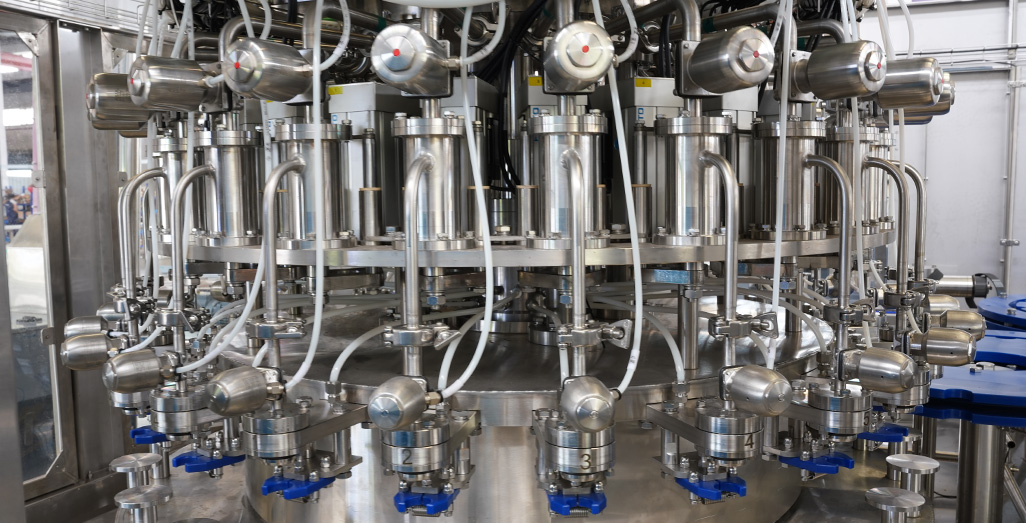

3.Filler
This machine works stable, fills precisely, and suits for cold and hot filling. The piston and piston barrel after the treatment of top technology, cooperate accurately, durable and wearable. It is equipped with material stirring system, three points liquid level control, frequency conversion adjustment, bottle in and out protection, automatic speed adjustment, filling with bottles and no filling without bottles. It adopts with good stainless-steel material, which meets the requirement of food sanitation, nice appearance.
This machine is reliable in design, compact in structure, additional with protection cover.
Compact structure, complete controlling system, convenient operation and high automatization.
Parts connect with material are all made of good stainless steel, bear rust and easy cleaning.
Precise in fixed quantify.
-

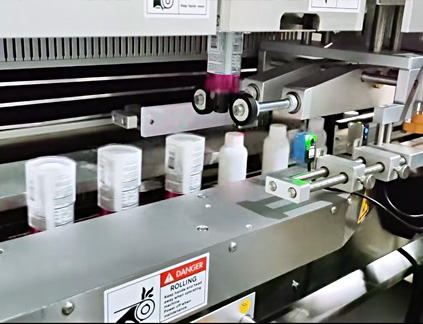

5.Discharge Starwheel
Nylon starwheel and conveyor belt work together to discharge bottles.
Equipped with bottle jam protection device.
-
6.Discharge Conveyor
Driving motor is frequency inverted to synchronize with the filling line to prevent bottles from falling.
Discharge conveyor is equipped with photocell switch to slow down and stop filling line in case of fallen bottles.
-
7.Machine Frame
The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated. The machine frame is wrapped with stainless steel sheet.
Driving system of the 3-in-1 Unit is positioned under the machine table. One main motor provides driving power via gear transmission.
The gear transmission system is an interleaved arrangement of steel gears and nylon gears.
The output shaft of the main motor is equipped overload protection to secure machine safety.
-
8.Electrical control system
The electrical cabinet is made of plated carbon steel. From bottle infeed to bottle discharge, a PLC controls the fully automatic operation of the 3-in-1 Unit.
Structure
-

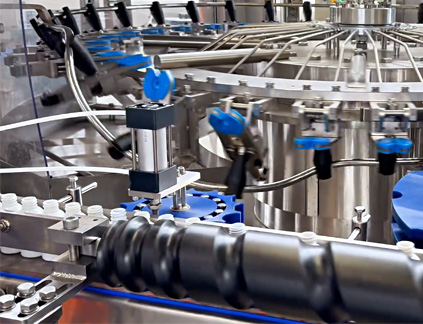

Bottle Infeed Screw
-
