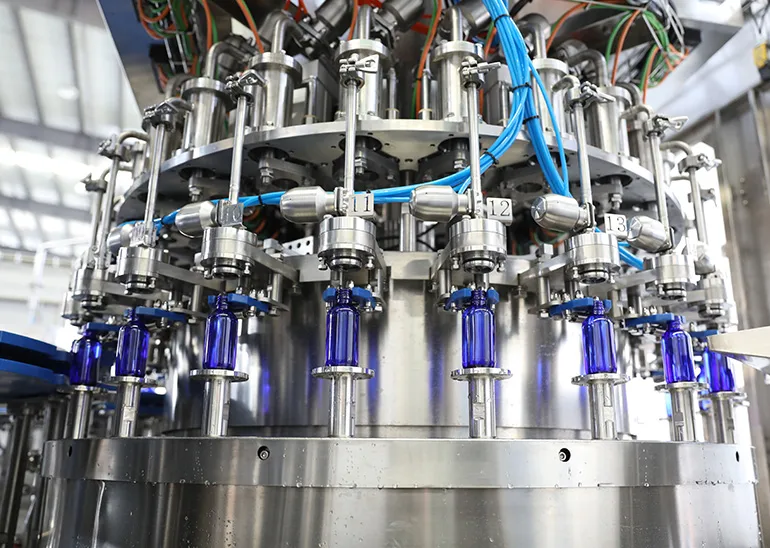

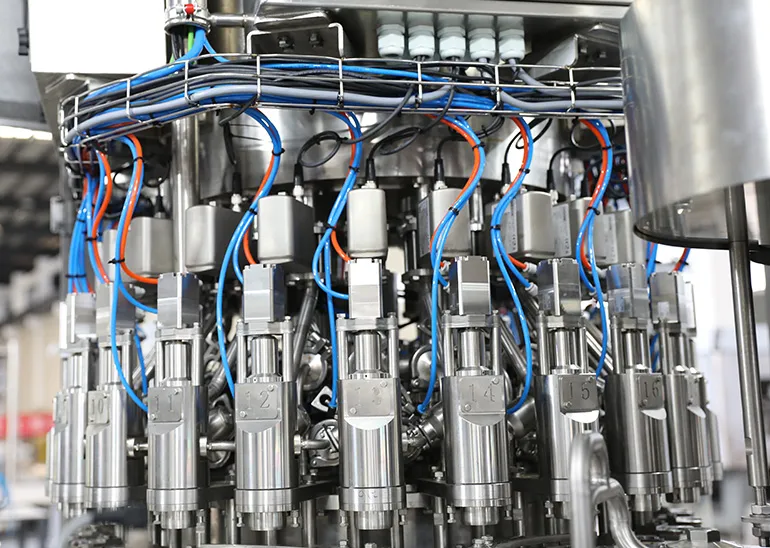

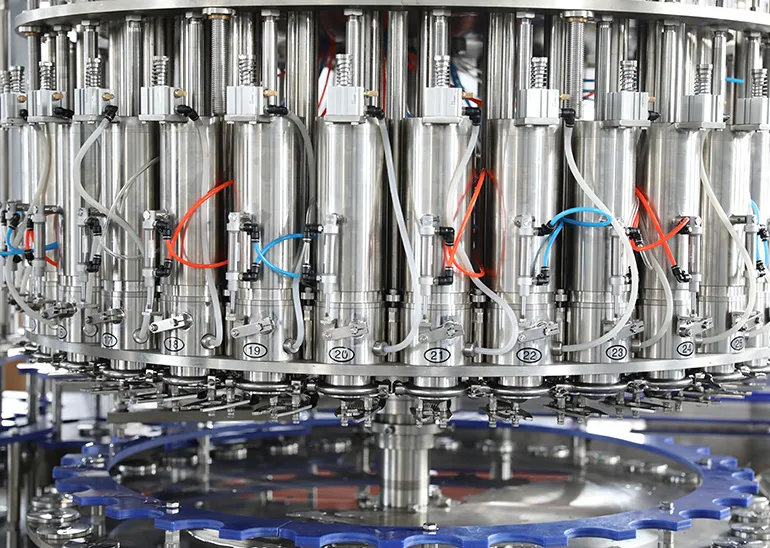

Piston Filling Machine for Viscous Product And Juice With Pulp

BZXGF series with servo piston cylinder is special for viscous liquids like juice pulp, paste, condensed milk, ketchup, chili, jam, honey, edible oil filling, capping and equipped with rotary transmission, PLC and frequency adjuster in speed. It is innovated and designed in the requirement of viscous liquids technics, which features reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for edible oil producers.

  • Application
  • juice, milk, laban, yogurt, plant protein drink with pulp and fruit pieces
  • Suitable for
  • PET, glass, can
  • Pulp dosing
  • peristaltic pump, measure cup, piston
  • Liquid filling
  • gravity, volumetric
  • Filling speed
  • 3,000 - 36,000BPH (500ml
Inquiry
  • Describe
  • Features
  • Structure
  • Transfer starwheel on filler
  • Specification

Describe

BZXGF series with servo piston cylinder is special for viscous liquids like juice pulp, paste, condensed milk, ketchup, chili, jam, honey, edible oil filling, capping and equipped with rotary transmission, PLC and frequency adjuster in speed. It is innovated and designed in the requirement of viscous liquids technics, which features reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for edible oil producers.

Features

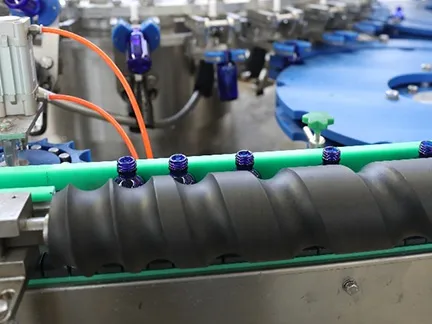

  • Bottle Infeed Screw

    Bottle block cylinder is used to prevent the bottle go into the filling equipment during normal running and default. It can be operated manually and automatically. If there is not enough bottle supply, the bottle block cylinder controls the starwheel and reduces the running speed as well.

    Bottle infeed screw drive is composed by the 2 level reducer, the 1st level is the cone gear drive, for driving the bottle in screw and bottle in chain, the 2nd level is bottle in screw drive box, for adjusting the bottle infeed screw and position adjustment during bottle shape changing.

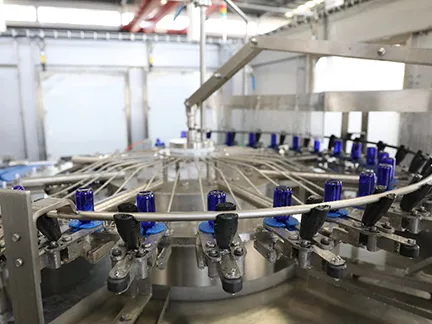

  • Rinser

    Composed by Dispenser, rinsing clamp, rinsing water recycle, there is a fixed rinsing time, the empty bottle was held by a fixed track, rinsing, drying, then reaches the cleaning purpose.

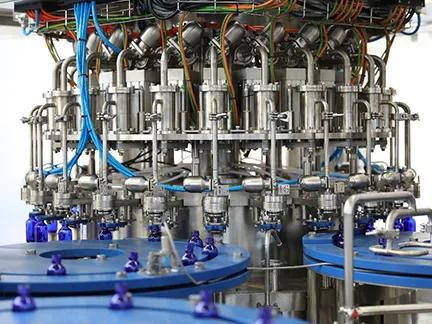

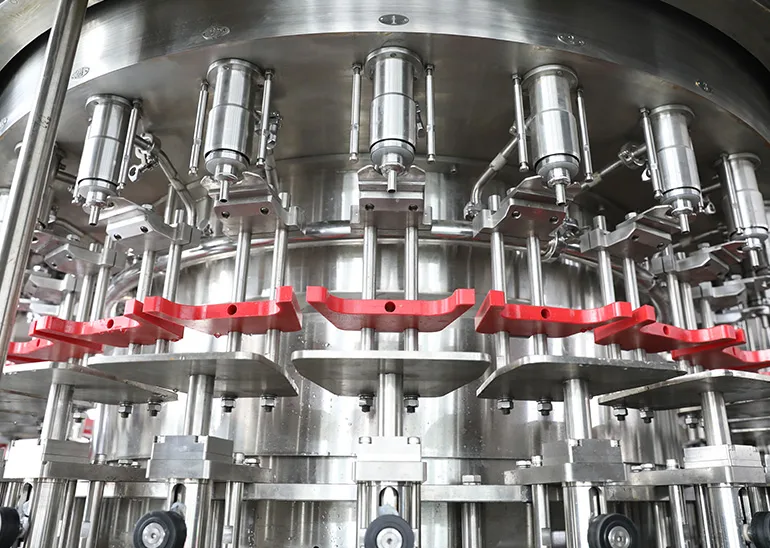

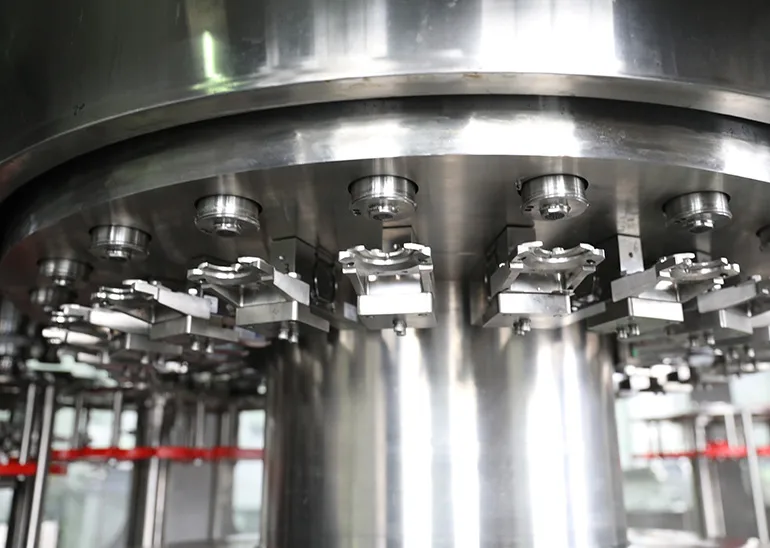

  • Filler

    This machine works stable, fills precisely, and suits for cold and hot filling. The piston and piston barrel after the treatment of top technology, cooperate accurately, durable and wearable. It is equipped with material stirring system, three points liquid level control, frequency conversion adjustment, bottle in and out protection, automatic speed adjustment, filling with bottles and no filling without bottles. It adopts with good stainless-steel material, which meets the requirement of food sanitation, nice appearance.

    This machine is reliable in design, compact in structure, additional with protection cover.

    Compact structure, complete controlling system, convenient operation and high automatization.

    Parts connect with material are all made of good stainless steel, bear rust and easy cleaning.

    Precise in fixed quantify.

    The servo electric cylinder adopts a well-known brand electric cylinder in Taiwan, which is controlled by a servo motor to control the lifting and lowering of the lead screw. The precision is extremely high. The thrust range can be from 800N to 1700N, and the speed can be adjusted.

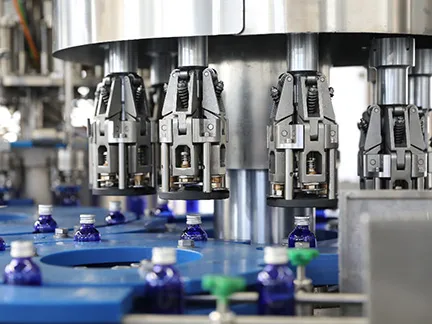

  • ROPP aluminum cap capper

    Aluminum cap capper is composed by gear device, capping device, anti-rotate pole and elevated device. The drive is passed through transfer gear to the capper gear , and the elevated pole pass it to the capper.

    The up and down movement is done by capping cam. The capping cam stays still, it rotates with the main equipment, and it rotates under the gear ring. Two screw roller and two ant burglary ring roller complete the capping under the capping self-rotation. The cam is fixed on the top board. So the cam stands still, when it rotates, the roller on the sleeve rolls along the cam curve while the sleeve moves up and down.

    When main shaft and gear rotate under the capping head, while two screw rollers and anti-burglary roller complete capping under self-rotation. If there is no cap, the safety piston will stop roller mesh. Adjust the nut can adjust the pressure.

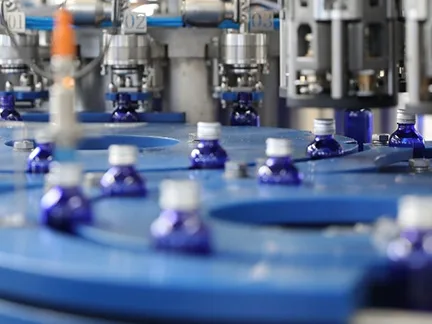

  • Discharge Starwheel

    Nylon starwheel and conveyor belt work together to discharge bottles.

    Equipped with bottle jam protection device.

  • Discharge Conveyor

    Driving motor is frequency inverted to synchronize with the filling line to prevent bottles from falling.

    Discharge conveyor is equipped with photocell switch to slow down and stop filling line in case of fallen bottles.

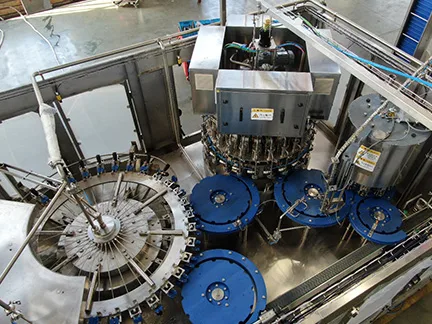

  • Machine Frame

    The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated. The machine frame is wrapped with stainless steel sheet.

    Driving system of the 3-in-1 Unit is positioned under the machine table. One main motor provides driving power via gear transmission.

    The gear transmission system is an interleaved arrangement of steel gears and nylon gears.

    The output shaft of the main motor is equipped overload protection to secure machine safety.

Structure

Features

Compact structured, good-looking, easy to operate and highly automated.

Parts with contact with material are all made of stainless steel of food-grade, no dead angles and easy to clean up.

Filling volume is controlled with film valves to ensure accurate filling.

High-speed and highly accurate filling valves with weighing sensors ensure no loss of liquid at high speed.

Liquid buffer element specially designed inside filling valves can eliminate the cutting affection and wallop between liquid and container, easy to eliminate the air bubble in material.

Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.

Highly effective cap sorting and feed in system is protective for feed in and cap absence.

Equipped with overload system to safeguard machine and operators.

Equipped with cap absence detector and bottle jam-up detector, which could stop the monoblock in that case.

Equipped with output calculating function for monoblock.

Main electronic components (touch screen, PLC and frequency inverter) are imported products.

  • Bottle Infeed Screw

  • Rinser

  • Filler

  • ROPP aluminum cap capper

  • Discharge Starwheel

  • Machine Frame

Transfer starwheel on filler

The electronic components like PLC and transducer are from Schneider, Mitsubishi, Omron, etc., and the pneumatic devices are also from international famous brands.

Main Electrical Specification
Material of filling valve

Stainless steel SUS304

PLC program controller Siemens
Inverter Mitsubishi
Low-volts breaker Mitsubishi
Photoelectrical controller Leuze
Proximity switch Leuze
Contactor Schneider
Main motor SEW

Specification

System Name Brand Origin
Transmission Gear Motor Sew Germany
Servo Motor Lenze Germany
Air Compressed Brake Steki Taiwan, China
Torque Limiter Steki Germany
Timing Belt (Seamless) Rw Italy
Air Compressed Brake Sit Germany
Key Bearing Ina/Fag Germany
Slewing Bearing Schmersal Germany
High Pressure Airway (0.01Um) Precision Filter Walker UK
(1Um) Precision Filter Walker UK
Proportional Valve Lanny Germany
High Pressure Valve Unit Eugen Seitz Switzerland
Safety valve Goetze Germany
Dew-Point Instrument GE USA
High Pressure Airway Ionic Gas Control Meech UK
