What Are the Characteristics of the Water Filling Machine?

Views: 6473 Author: Howie SUN Publish Time: Update Time:
Water filling looks like a commodity decision until the bottle format changes, and then the valve type, the change parts and the cleaning cycle decide what the line can actually run.
Key facts at a glance
Where it fitsStill water, RO water, mineral water
Valve typeGravity or volumetric valve
Capacity range5,000-48,000 BPH at 500 ml
Bottle sizes200 ml to 16 L, by configuration
Contact materialSUS 304 product contact, CIP-ready
Line scopeTreatment, blowing, filling, capping, labelling, packing

What does a water line have to get right before speed matters?

A water line stands or falls on three inputs: raw water analysis, neck finish, and how well filler and capper are matched. Most of the meeting goes on BPH; the other two get a fraction of the time. Change the thread by a millimetre and the rinser clamp and capping head have to change with it.

What changes when the bottle format changes?

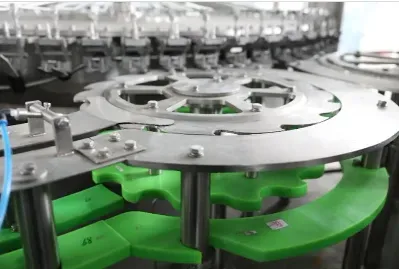

Star wheels, guide rails, grippers, cap chute and filling recipe all change with the format. The parts are not the cost; the time is. Two formats on one line typically cost 40-90 minutes per switch, which is why the production factor falls from about 0.85 to 0.70 and why a second small line is sometimes cheaper than one flexible line.

Filling principleBest forWatch out for
GravityStill water, one rigid bottle sizeThin-wall bottles deform under head pressure
Volumetric valve3-15 L and mixed formatsValve wear shows as slow drift, not a sudden error
IsobaricCarbonated water onlyNeeds counter-pressure, so slower per valve
Load cellOil and high-value liquidSlower cycle, higher cost per valve

Where this becomes a line rather than a single machine, the Blow-fill-cap Combibloc for Still Water is the starting point.

What should the quotation specify that it usually does not?

Ask for the rated capacity of the slowest station, the changeover checklist, the CIP cycle time, and the water and power consumption per 1,000 bottles. Those four numbers decide the real cost per bottle. A quotation that lists only the filler capacity and a total price leaves the buyer comparing incomparable offers.

Site requirements, air and water consumption sit with the Gravity Filling Machine for Still Water.

Does bottle lightweighting change the filler?

A lighter bottle is less rigid, so it deforms more under the filling head and grips differently in the star wheels. The filler may need a different neck handling and a lower contact pressure. Lightweighting is a bottle project that reaches into the filling line.

The same question is worked through from another angle in What Is a Water Filling Machine and Its Working.

How to read the numbers. The BPH figures quoted are reference ranges on the product specification. Changeover between bottle formats, CIP and downstream stops sit outside a rated BPH, so plan on 0.65-0.85.

Frequently asked questions

How many bottles per minute is 12,000 BPH?

200 bottles per minute. Divide BPH by 60. A 24,000 BPH line runs at 400 bottles per minute, which is why filler and packer have to be matched rather than bought separately.

What utilities does a 12,000 BPH water line need?

Plan for 380 V three-phase power, 0.6-0.8 MPa compressed air, and a chiller if blow molding runs in-house. Exact consumption belongs in the utility schedule of the quotation, not in a rule of thumb.

How long does installation and commissioning take?

For a complete line with blowing, filling, labelling and packing, plan several weeks on site after arrival, plus operator training. Civil work and utility readiness are the usual delay, not the machinery.

Can a still water line be converted to carbonated later?

Not on the same filler. Carbonation needs isobaric valves, a CO2 dosing and mixing unit, and a different bowl. A combiblock can carry both valve sets, but they are separate specifications, not a field conversion.

Key takeaways
  1. Capacity is the rating of the slowest station, not the filler nameplate.
  2. Size with a production factor of 0.65-0.85, never 1.0.
  3. Capacity planning starts with CIP and changeover, not with the filler nameplate.
  4. A 5 L line and a 500 ml line are separate specifications; treating them as one flexible option is where budgets slip.
About the author
Written by the Sunswell engineering team - led by Howie SUN, Founder & CEO, with 14 years in filling and blow-moulding equipment R&D and turnkey project delivery across 71+ countries.
Last reviewed: 2026-08-28 . Reviewed by Sunswell engineering team
×
