| Filling system | Isobaric, CO2 counter-pressure |
| Capacity | 12,000-36,000 BPH at 0.2-2 L |
| Containers | PET bottle, glass bottle, aluminum can |
| CO2 handling | Pre-pressurisation and return pipe, no venting |
| Valves | Mechanical, semi-electric or volumetric |
| Line scope | Water treatment, syrup mixing, carbonation, filler, pack |

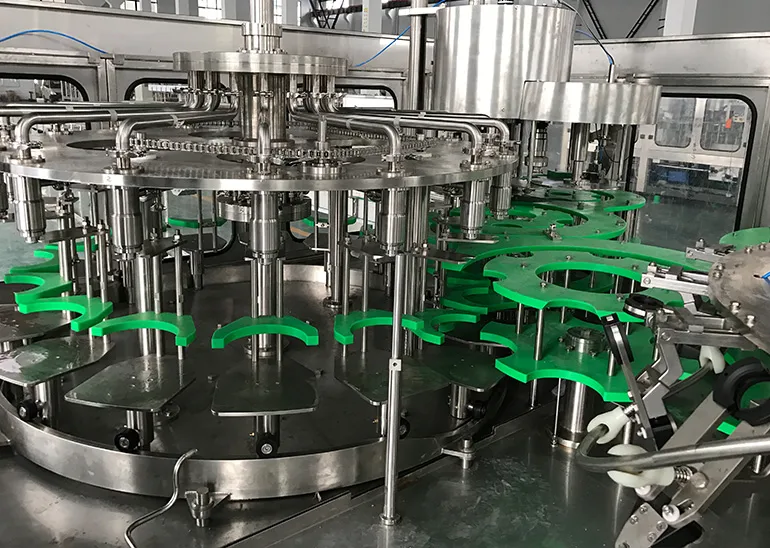

A carbonated drink is a saturated solution held in equilibrium by pressure and temperature. If the filler exposes it to atmosphere, CO2 leaves the liquid as foam and the fill level collapses. Isobaric filling pressurises the bottle to the bowl pressure first, fills under counter-pressure, then releases in a controlled ramp.
Carbonated water filling technologies must account for gas pressure variations, carbonation levels, and the prevention of foaming during the filling process.
Foam is usually a temperature or pressure problem, not a valve problem. Warm product, a fast pressure release at the end of fill, a worn seal that lets gas bypass, or a dirty return pipe all show up as foam at the same place. Check the product temperature and the pressure ramp before touching the valves.
In the dynamic landscape of the beverage industry, distinctions in filling technologies, foam control, pressure requirements, machine selection, and quality assurance can significantly impact operational efficiency and product quality.
| Valve type | Setting | Best for |
|---|---|---|
| Mechanical | Fixed cam profile | Single product, long runs |
| Semi-electric | Signal-timed open and close | Recipe changes within one product family |
| Volumetric | Chamber dose | Pressure or temperature drift during the shift |
| Isobaric + volumetric | Chamber dose under counter-pressure | High CO2 with tight fill accuracy |
Site requirements, air and water consumption sit with the Isobaric Filling Machine for CSD and Sparkling Water.
Size the filler on peak shift demand with a production factor of 0.65-0.85, then size the CO2 supply on average consumption, not peak. A CO2 plant built for the filler nameplate runs partly loaded for most of the year and loses more gas to vaporisation than the line saves in speed.
By incorporating advanced filling technologies, prioritizing foam control strategies, optimizing pressure requirements, selecting appropriate filling machines, and maintaining strict quality assurance protocols, bottled water plants can enhance operational efficiency, product quality, and customer satisfaction.
The CSD & Sparkling Water by Mechanical Filler is the matching unit when this becomes a line project.
Warm product holds less CO2 at the same pressure, so the filler either loses gas or needs a higher pressure that increases foaming. Chilling before carbonation is the standard answer, and the chiller capacity belongs in the utility schedule.
The same question is worked through from another angle in Energy Drink Market 2026.
A can is filled and seamed, a PET bottle is filled and capped. Cans run faster per unit and are counted in CPH; PET allows larger formats and a lighter package. The filler principle is the same isobaric one, the closing equipment and the line rate are not.
Usually product temperature rising in the bowl or a worn valve seal. Both change the pressure balance, so the fill cuts off earlier. Log bowl temperature and fill weight together for one shift before changing any valve.
400 cans per minute. CPH and BPH are different units and cannot be compared directly, because can and bottle formats carry different volumes and different downstream equipment.
It is used where the package needs internal pressure support or low oxygen, for example in cans and in some PET formats. It is an option, not a default, and it adds a consumable cost per 1,000 units.
The higher the volumes, the sharper the mouthfeel and the more pressure the package must hold. Higher carbonation also needs a colder fill and a tighter pressure ramp, so it reduces practical line speed.
Warm product and an empty bowl. The first bottles see the largest pressure step. A short recirculation before production and a controlled bowl cool-down remove most of it.
