How to Match a Water Filling Machine to Your Bottle Type and Production Needs

Views: 5283 Author: Howie SUN Publish Time: Update Time:
Water filling looks like a commodity decision until the bottle format changes, and then the valve type, the change parts and the cleaning cycle decide what the line can actually run. It's low-pressure and works well for still water in standard PET or glass bottles.

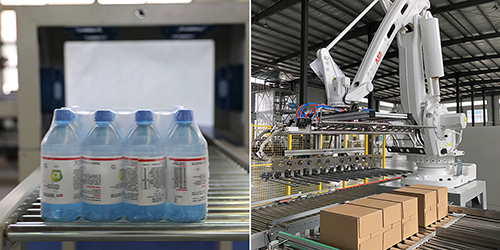

Downstream Packaging

Key facts at a glance
Where it fitsStill water, RO water, mineral water
Filling methodGravity or volumetric valve
Capacity range5,000-48,000 BPH at 500 ml
Format range200 ml to 16 L, by configuration
Wetted partsSUS 304 product contact, CIP-ready
Line scopeTreatment, blowing, filling, capping, labelling, packing

What does a water line have to get right before speed matters?

A water line stands or falls on three inputs: raw water analysis, neck finish, and how well filler and capper are matched. BPH takes the meeting; the neck finish and the capper match get the last five minutes. Change the thread by a millimetre and the rinser clamp and capping head have to change with it.

It's low-pressure and works well for still water in standard PET or glass bottles.

Gravity, volumetric or isobaric: which filling system fits?

Gravity filling holds a level in a rigid bottle and costs least per valve. Volumetric filling doses a fixed volume into a chamber, so it holds accuracy across 3 L, 5 L and 10 L formats without changing the head. Isobaric filling is for carbonated product only, because it keeps CO2 in solution under counter-pressure. A still water line never needs it.

These liquids foam or react to oxygen, so pressure filling is safer.

Filling principleBest forWatch out for
GravityStill water, one rigid bottle sizeThin-wall bottles deform under head pressure
Volumetric valve3-15 L and mixed formatsValve wear shows as slow drift, not a sudden error
IsobaricCarbonated water onlyNeeds counter-pressure, so slower per valve
Load cellOil and high-value liquidSlower cycle, higher cost per valve

Throughput and change-part lists are on the Blow-fill-cap Combibloc for Still Water page rather than in this note.

What does a small 2,000-6,000 BPH line give up?

A small line gives up automation, not quality. Manual or semi-automatic packing, fewer accumulation buffers, and a simpler CIP usually follow. What it should not give up is the filling valve and the capping head, because those two decide whether the product is saleable.

The Gravity Filling Machine for Still Water is the matching unit when this becomes a line project.

How is a water line cleaned, and how often?

A water line is cleaned on a fixed cycle plus a changeover clean. The circuit covers the filler bowl, the product pipes and the filling valves. Ozone or heat is used for disinfection, and the cycle time is a planned stop rather than an incident.

The same question is worked through from another angle in Understanding Gravity Filling Machines for Still Water Production.

Does bottle lightweighting change the filler?

A lighter bottle is less rigid, so it deforms more under the filling head and grips differently in the star wheels. The filler may need a different neck handling and a lower contact pressure. Lightweighting is a bottle project that reaches into the filling line.

If you run under 6000 bottles per hour, a linear machine might be enough.

How to read the numbers. Treat the capacity figures as reference ranges from the product specification. Bottle-format changeover and CIP are outside the rated figure; a line sized at 1.0 delivers less than the nameplate from the first week.

Frequently asked questions

Can one water line run 500 ml and 1.5 L bottles?

Yes, with change parts: star wheels, guide rails, grippers and a filling recipe. Budget 40-90 minutes per switch and expect the production factor to drop from about 0.85 to 0.70.

What water treatment does a bottled water line need?

It follows the raw water analysis, not a standard package. Surface water usually needs multi-media filtration, RO and UV or ozone. Low-hardness municipal water may need only carbon filtration and disinfection.

How much floor space does a water line need?

It depends on whether blowing, packing and palletizing sit in the same hall. Fix the footprint by drawing the layout at 1:100 with conveyor radii included, then check the turning radius of the largest format.

What utilities does a 12,000 BPH water line need?

Plan for 380 V three-phase power, 0.6-0.8 MPa compressed air, and a chiller if blow molding runs in-house. Exact consumption belongs in the utility schedule of the quotation, not in a rule of thumb.

How long does installation and commissioning take?

For a complete line with blowing, filling, labelling and packing, plan several weeks on site after arrival, plus operator training. Civil work and utility readiness are the usual delay, not the machinery.

Key takeaways
  1. Capacity is the rating of the slowest station, not the filler nameplate.
  2. Size with a production factor of 0.65-0.85, never 1.0.
  3. Bottle format settles the filling system before output is discussed.
  4. A 5 L line and a 500 ml line are separate specifications; treating them as one flexible option is where budgets slip.
About the author
Written by the Sunswell engineering team - led by Howie SUN, Founder & CEO, with 14 years in filling and blow-moulding equipment R&D and turnkey project delivery across 71+ countries.
Last reviewed: 2026-08-28 . Reviewed by Sunswell engineering team
×
