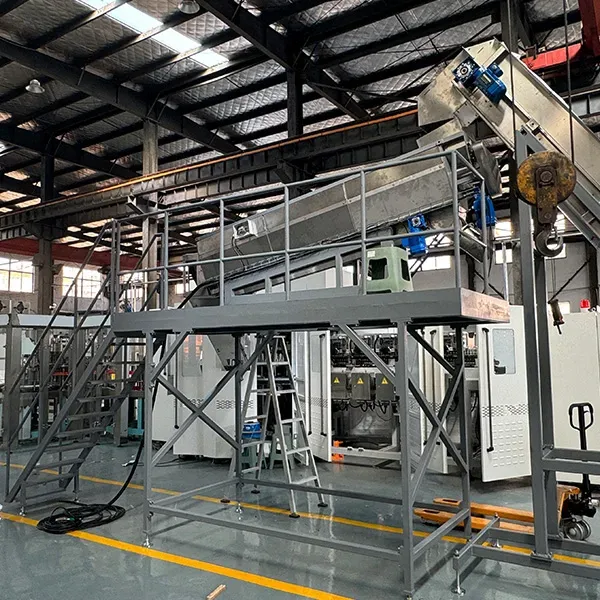

Carbonated filling is a pressure and temperature problem: CO2 stays in the product only while the bottle is held above the saturation pressure for its temperature. Preforms are stored in the hopper, with ultra-large capacity, which can accommodate up to 50,000 preforms.

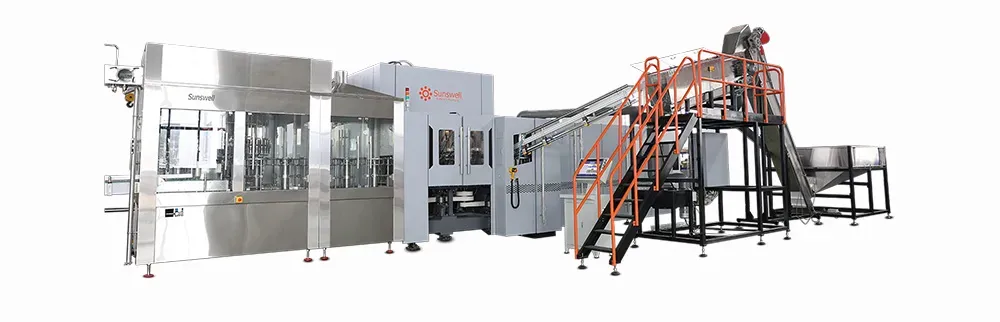

Blowing Filling Capping

Key facts at a glance
Filling methodIsobaric, CO2 counter-pressure
Output range12,000-36,000 BPH at 0.2-2 L
ContainersPET bottle, glass bottle, aluminum can
CO2 handlingPre-pressurisation and return pipe, no venting
ValvesMechanical, semi-electric or volumetric
Line scopeWater treatment, syrup mixing, carbonation, filler, pack

Why does carbonated product need isobaric filling?

A carbonated drink is a saturated solution held in equilibrium by pressure and temperature. If the filler exposes it to atmosphere, CO2 leaves the liquid as foam and the fill level collapses. Isobaric filling pressurises the bottle to the bowl pressure first, fills under counter-pressure, then releases in a controlled ramp.

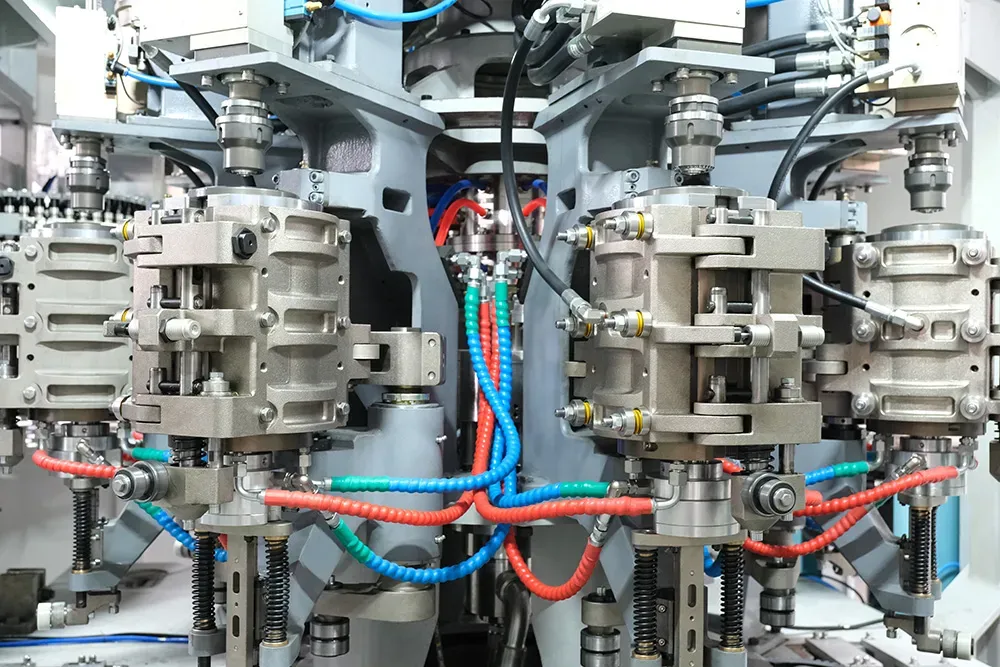

The equipment has the special designed twice blowing system (equipment for hot filling bottles has three times blowing system): preblowing and blowing with high pressure to finally make bottle.

What decides CO2 retention on the line?

Four points decide it: the carbonation level set at the mixer, the product temperature at the filler, the pressure profile during fill, and the time between capping and packing. A line that holds 4.0 volumes at the mixer can deliver 3.4 in the bottle if the filler bowl runs warm or the capping head leaks.

Heating temperature can reach about 90 to 100 degrees for CSD bottle.

Valve typeSettingBest for
MechanicalFixed cam profileSingle product, long runs
Semi-electricSignal-timed open and closeRecipe changes within one product family
VolumetricChamber dosePressure or temperature drift during the shift
Isobaric + volumetricChamber dose under counter-pressureHigh CO2 with tight fill accuracy

The unit behind this configuration is the CSD & Sparkling Water by Mechanical Filler.

Mechanical, semi-electric or volumetric valves: what is the difference?

Mechanical valves open and close on a fixed cam profile and are the most forgiving on maintenance. Semi-electric valves use a signal to open and close, so the fill window can be set per recipe. Volumetric valves dose a chamber and hold accuracy when bottle pressure or product temperature drifts during the shift.

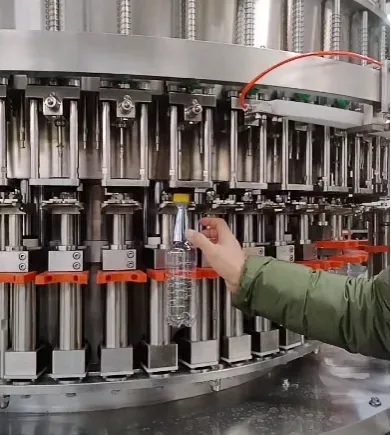

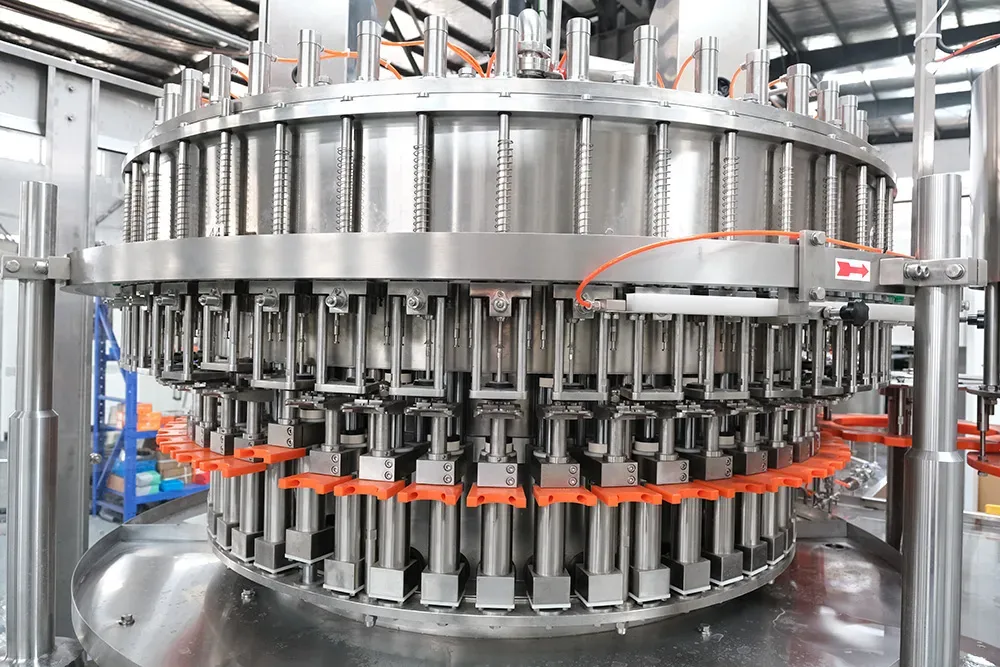

The filling part adopt Isobaric filling method, and the filling accuracy is within ±2mm.

The Isobaric Filling Machine for CSD and Sparkling Water is the reference unit for this configuration.

How do you size a CSD line without oversizing the CO2 plant?

Size the filler on peak shift demand with a production factor of 0.65-0.85, then size the CO2 supply on average consumption, not peak. A CO2 plant built for the filler nameplate runs partly loaded for most of the year and loses more gas to vaporisation than the line saves in speed.

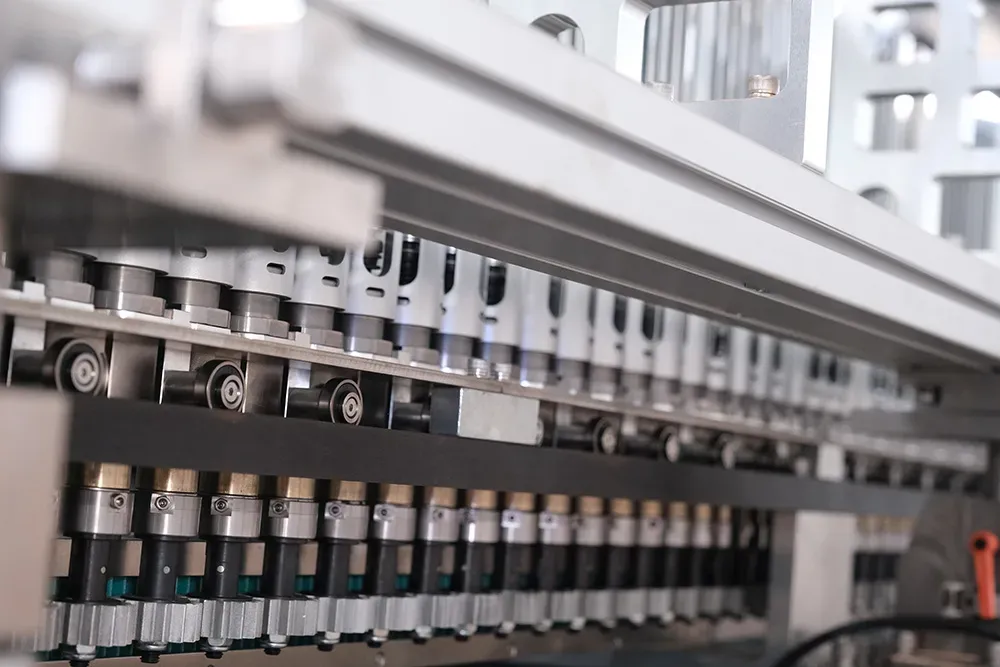

Preforms are stored in the hopper, with ultra-large capacity, which can accommodate up to 50,000 preforms.

The same question is worked through from another angle in How to Choose Csd Filling Machine.

What is overfoaming at the filler and how is it controlled?

Overfoaming is gas leaving the product too fast at the end of fill. The pressure release has to be ramped, not dumped, and the fill height has to leave the right headspace. A snift valve that opens too early turns a good fill into a wet bottle.

The blowing pressure and time of the second blowing can be adjusted.

How to read the numbers. Treat the capacity figures as reference ranges from the product specification. Carbonation hold-down and filling-temperature pull-down are part of the cycle but not of a rated BPH, so plan on 0.65-0.85.

Frequently asked questions

Can one filling machine run both still water and CSD?

No. Carbonation needs isobaric valves under counter-pressure; still water runs gravity or volumetric. A combiblock can carry both valve sets, but they are specified separately and are not interchangeable at the push of a button.

Why is my fill level dropping through the shift?

Usually product temperature rising in the bowl or a worn valve seal. Both change the pressure balance, so the fill cuts off earlier. Log bowl temperature and fill weight together for one shift before changing any valve.

How many cans per hour is 24,000 CPH?

400 cans per minute. CPH and BPH are different units and cannot be compared directly, because can and bottle formats carry different volumes and different downstream equipment.

Can a CSD line fill glass bottles?

Yes, with a different infeed, spacing and capping set. Glass needs mechanical spacing rather than an air conveyor, and the filler runs at 4,000-20,000 BPH on glass against 12,000-36,000 BPH on PET.

What causes a foaming spike at start-up?

Warm product and an empty bowl. The first bottles see the largest pressure step. A short recirculation before production and a controlled bowl cool-down remove most of it.
