| Filling principle | Isobaric for beer and CSD, volumetric for juice and tea |
| Output range | Up to 25,000 CPH |
| Can range | Standard 250, 330 and 500 ml |
| Seaming | Roller seamer integrated with the filler |
| Options | Hot fill for juice and tea, nitrogen dosing |
| Key control | Fill level, seam tightness, dissolved oxygen |
A can line is counted in cans per hour because the container is the unit the seamer closes. CPH and BPH cannot be converted without the fill volume, and the downstream packer is sized in cases per hour. Comparing a 24,000 CPH can line with a 24,000 BPH bottle line compares two different plants.
Dissolved oxygen enters at three points: deaeration of the product, the filler bowl atmosphere, and the gap between fill and seam. Nitrogen dosing and a steam or CO2 tunnel at the seamer reduce the last one. For beer and juice, the dissolved oxygen in the finished can is the number to test, not the setting on the doser.

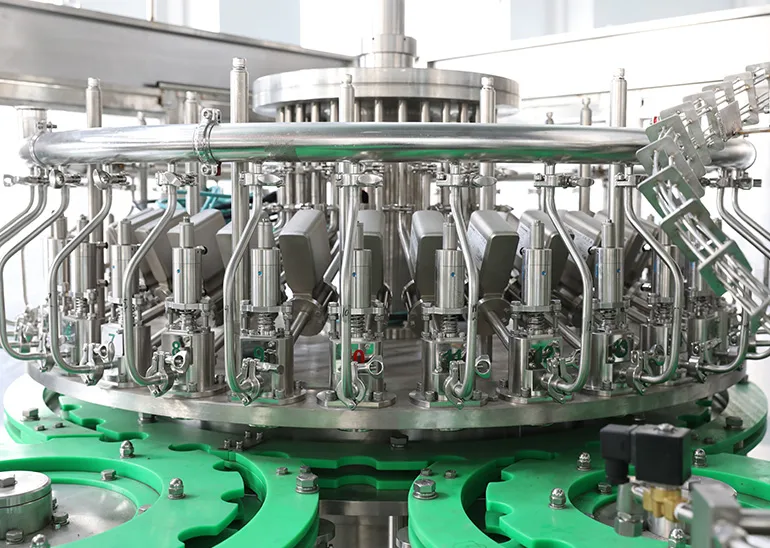

By injecting a precise amount of nitrogen into the cans, nitrogen dosers help displace oxygen, which is known to accelerate the dissipation of CO2.
| Product | Filling principle | Critical measurement |
|---|---|---|
| Beer | Isobaric, cold | Dissolved oxygen and seam tightness |
| CSD and soda | Isobaric, cold | CO2 retention and fill height |
| Juice and tea | Volumetric or hot fill | Fill temperature and seam integrity |
| Energy drinks | Isobaric or volumetric | Dissolved oxygen and closure |
The Aluminum Can Filling Machine for Beer, Carbonated Soft Drink is the matching unit when this becomes a line project.
The filler discharges cans onto a transfer star wheel that hands each can to the seamer at a fixed pitch. Any slip at that transfer shows up as a damaged flange and a failed seam. The transfer is the most alignment-sensitive point on a can line.
Where this becomes a line rather than a single machine, the Aluminum Can Filling Machine for Hotfill Juice and Tea is the starting point.
A heated product path, a fill temperature control loop and a cooling tunnel after seaming. The can itself tolerates the heat; the lining and the product do not always. The temperature window belongs to the product specification.
The same question is worked through from another angle in How to Select the Right Nitrogen Doser for Aluminum.
The filler, the seamer and the conveyor all change with the can diameter and height. Seamer change parts are precise and expensive, so a can line is normally specified around one or two formats and run in campaigns rather than switched daily.
300 cans per minute. Divide CPH by 60. The seamer, the filler and the packer all have to carry that number, so the line rating is the lowest of the three.
It is the oxygen left in the product after filling. It drives oxidation, off-flavour and haze. Beer and juice have tight limits, and the measurement belongs in the acceptance protocol, taken from the finished can.
It is common for beer, juice and some CSD, where headspace oxygen has to be pushed down. It is an option with a consumable cost, so it belongs in the utility and consumable schedule, not in the base price.
Usually conveyor pressure or a jam at a transfer, not the can quality. Air conveyor pressure, guide rail gaps and accumulation length are the three settings to check first.
With change parts for the filler, the seamer and the conveyor, yes. The changeover is longer than a label change and is normally scheduled between campaigns.
Country:Kazakhstan
Product: PET Bottled Sparkling Water, Canned Soft Drink, Canned Tea
Capacity: 25000CPH (250ml)
Solution:Three Lines,7000BPH(1.5L), 15000CPH(330ml),15000CPH(450ml)
