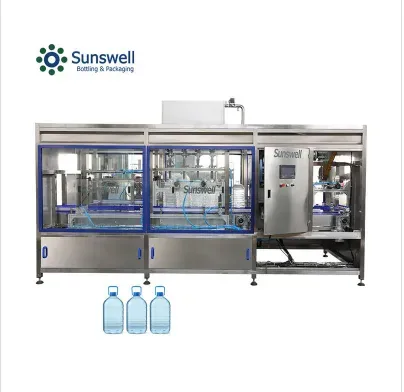

Why Is Water Filling Machine Popular?

Views: 6603 Author: Howie SUN Publish Time: Update Time:
Bottled water is the simplest beverage to fill and the easiest line to oversize, because the filler rating hides the treatment ceiling, the changeover time and the packer limit. This type of water filling machine has a small repulsion to the viscosity of the liquid and the gas content.
Key facts at a glance
Product fitStill water, RO water, mineral water
Valve typeGravity or volumetric valve
Output range5,000-48,000 BPH at 500 ml
Bottle range200 ml to 16 L, by configuration
Wetted partsSUS 304 product contact, CIP-ready
Line scopeTreatment, blowing, filling, capping, labelling, packing

Gravity, volumetric or isobaric: which filling system fits?

Gravity filling holds a level in a rigid bottle and costs least per valve. Volumetric filling doses a fixed volume into a chamber, so it holds accuracy across 3 L, 5 L and 10 L formats without changing the head. Isobaric filling is for carbonated product only, because it keeps CO2 in solution under counter-pressure. A still water line never needs it.

When the pressure in the bottle is higher than atmospheric pressure, the vacuum filling machine starts filling.

What should the quotation specify that it usually does not?

Ask for the rated capacity of the slowest station, the changeover checklist, the CIP cycle time, and the water and power consumption per 1,000 bottles. Those four numbers decide the real cost per bottle. A quotation that lists only the filler capacity and a total price leaves the buyer comparing incomparable offers.

Filling principleBest forWatch out for
GravityStill water, one rigid bottle sizeThin-wall bottles deform under head pressure
Volumetric valve3-15 L and mixed formatsValve wear shows as slow drift, not a sudden error
IsobaricCarbonated water onlyNeeds counter-pressure, so slower per valve
Load cellOil and high-value liquidSlower cycle, higher cost per valve

Sizing for this duty runs through the Blow-fill-cap Combibloc for Still Water, where the valve count is set out.

What does a small 2,000-6,000 BPH line give up?

A small line gives up automation, not quality. Manual or semi-automatic packing, fewer accumulation buffers, and a simpler CIP usually follow. What it should not give up is the filling valve and the capping head, because those two decide whether the product is saleable.

This type of water filling machine has a small repulsion to the viscosity of the liquid and the gas content.

The unit behind this configuration is the Gravity Filling Machine for Still Water.

What makes fill accuracy drift during a shift?

Temperature, valve wear and bottle variation, in that order. Water is less sensitive than oil, but a warm product foams more and a worn valve closes late. Weighing a sample every few hours catches the drift before it reaches the customer.

Pressure filling machine is usually used to fill liquid containing gas, such as beer, soda, champagne, etc.

The same question is worked through from another angle in 2000BPH 5-Gallon Filling Line Ready for Shipment.

How to read the numbers. Every figure in this note is a reference range from the product specification, not a guaranteed output. Bottle-format changeover and CIP are outside the rated figure; a line sized at 1.0 delivers less than the nameplate from the first week.

Frequently asked questions

What water treatment does a bottled water line need?

It follows the raw water analysis, not a standard package. Surface water usually needs multi-media filtration, RO and UV or ozone. Low-hardness municipal water may need only carbon filtration and disinfection.

How much floor space does a water line need?

It depends on whether blowing, packing and palletizing sit in the same hall. Fix the footprint by drawing the layout at 1:100 with conveyor radii included, then check the turning radius of the largest format.

What utilities does a 12,000 BPH water line need?

Plan for 380 V three-phase power, 0.6-0.8 MPa compressed air, and a chiller if blow molding runs in-house. Exact consumption belongs in the utility schedule of the quotation, not in a rule of thumb.

What is the acceptable fill level tolerance for water?

Commercial practice is a stated band per bottle size, typically checked by weight at the filler outlet. The band belongs in the acceptance protocol. A line without a written tolerance will argue about it at commissioning.

Key takeaways
  1. Capacity is the rating of the slowest station, not the filler nameplate.
  2. Before output is discussed, neck finish and bottle rigidity have already fixed the change parts and the filling system.
  3. Capacity planning starts with CIP and changeover, not with the filler nameplate.
  4. A 5 L line and a 500 ml line are separate specifications; treating them as one flexible option is where budgets slip.
About the author
Written by the Sunswell engineering team - led by Howie SUN, Founder & CEO, with 14 years in filling and blow-moulding equipment R&D and turnkey project delivery across 71+ countries.
Last reviewed: 2026-08-28 . Reviewed by Sunswell engineering team
×
