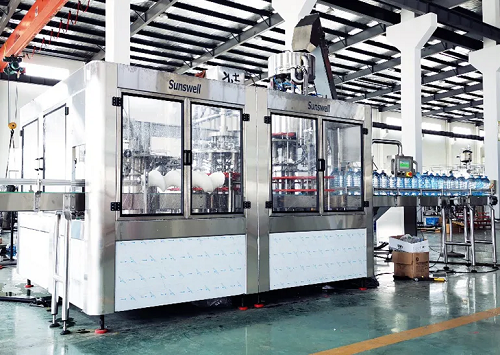

What Is the Function of the Water Filling Machine?

Views: 7838 Author: Howie SUN Publish Time: Update Time:
A bottle water line is treatment, blowing, filling, capping and packing in one chain, and its real output is set by the slowest station in that chain rather than by the filler nameplate. Equipped with programmable logic controllers (PLCs) and touch screen interfaces, allowing for precise control and easy operation.

Mechanical Valve Water Filling Machine For 3-15L Bottle

Key facts at a glance
Product fitStill water, RO water, mineral water
Filling principleGravity or volumetric valve
Capacity5,000-48,000 BPH at 500 ml
Bottle range200 ml to 16 L, by configuration
Contact materialSUS 304 product contact, CIP-ready
Line scopeTreatment, blowing, filling, capping, labelling, packing

What does a water line have to get right before speed matters?

Raw water, neck finish and the filler-capper match decide more about a water line than its BPH. Most of the meeting goes on BPH; the other two get a fraction of the time. Rinser clamps and capping heads are cut for one neck finish; a 1 mm thread change means new change parts rather than a new machine.

Equipped with programmable logic controllers (PLCs) and touch screen interfaces, allowing for precise control and easy operation.

How do you turn daily demand into a BPH figure?

Work backwards from cases per day. Divide bottles per day by productive hours, then divide again by a production factor of 0.65-0.85. The factor covers changeover, CIP, label roll changes and downstream stops. Sizing at 1.0 is the most common and most expensive mistake in a water project, because the shortfall only appears once the line is running.

Filling principleBest forWatch out for
GravityStill water, one rigid bottle sizeThin-wall bottles deform under head pressure
Volumetric valve3-15 L and mixed formatsValve wear shows as slow drift, not a sudden error
IsobaricCarbonated water onlyNeeds counter-pressure, so slower per valve
Load cellOil and high-value liquidSlower cycle, higher cost per valve

The Blow-fill-cap Combibloc for Still Water is the reference unit for this configuration.

Where does mineral water differ from purified water?

Mineral water is defined by its source and its mineral profile, so treatment is limited to what the label claim allows. Purified water starts from any feed and is built up to a specification. The filling machine is the same; the treatment train and the legal claim are not.

Sizing for this duty runs through the Gravity Filling Machine for Still Water, where the valve count is set out.

How is a water line cleaned, and how often?

A water line is cleaned on a fixed cycle plus a changeover clean. The circuit covers the filler bowl, the product pipes and the filling valves. Ozone or heat is used for disinfection, and the cycle time is a planned stop rather than an incident.

The same question is worked through from another angle in How to Choose Between Gravity, Pressure, and Volumetric Filling.

How to read the numbers. The output figures are specification ranges; the measured rate depends on the product and the shift. Bottle-format changeover and CIP are outside the rated figure; a line sized at 1.0 delivers less than the nameplate from the first week.

Frequently asked questions

Can one water line run 500 ml and 1.5 L bottles?

Yes, with change parts: star wheels, guide rails, grippers and a filling recipe. Budget 40-90 minutes per switch and expect the production factor to drop from about 0.85 to 0.70.

What water treatment does a bottled water line need?

It follows the raw water analysis, not a standard package. Surface water usually needs multi-media filtration, RO and UV or ozone. Low-hardness municipal water may need only carbon filtration and disinfection.

What utilities does a 12,000 BPH water line need?

Plan for 380 V three-phase power, 0.6-0.8 MPa compressed air, and a chiller if blow molding runs in-house. Exact consumption belongs in the utility schedule of the quotation, not in a rule of thumb.

Can a still water line be converted to carbonated later?

Not on the same filler. Carbonation needs isobaric valves, a CO2 dosing and mixing unit, and a different bowl. A combiblock can carry both valve sets, but they are separate specifications, not a field conversion.

Key takeaways
  1. Capacity is the rating of the slowest station, not the filler nameplate.
  2. Size with a production factor of 0.65-0.85, never 1.0.
  3. Capacity planning starts with CIP and changeover, not with the filler nameplate.
  4. It is the bottle format, not the BPH target, that picks the filling system.
About the author
Written by the Sunswell engineering team - led by Howie SUN, Founder & CEO, with 14 years in filling and blow-moulding equipment R&D and turnkey project delivery across 71+ countries.
Last reviewed: 2026-08-28 . Reviewed by Sunswell engineering team
×
