How to Improve Sparkling Water Production with Semi-Electric Fillers

Views: 1617 Author: Howie SUN Publish Time: Update Time:
Isobaric filling is the only way to put a carbonated drink into a bottle without losing the gas, which is why a still water filler cannot be converted by adding a CO2 unit. One of the fundamental aspects of producing high-quality sparkling water is ensuring optimal CO2 retention throughout the bottling process.
Key facts at a glance
Filling principleIsobaric, CO2 counter-pressure
Output range12,000-36,000 BPH at 0.2-2 L
ContainersPET bottle, glass bottle, aluminum can
CO2 handlingPre-pressurisation and return pipe, no venting
ValvesMechanical, semi-electric or volumetric
Line scopeWater treatment, syrup mixing, carbonation, filler, pack

Where does foam actually come from?

Foam is usually a temperature or pressure problem, not a valve problem. Warm product, a fast pressure release at the end of fill, a worn seal that lets gas bypass, or a dirty return pipe all show up as foam at the same place. Check the product temperature and the pressure ramp before touching the valves.

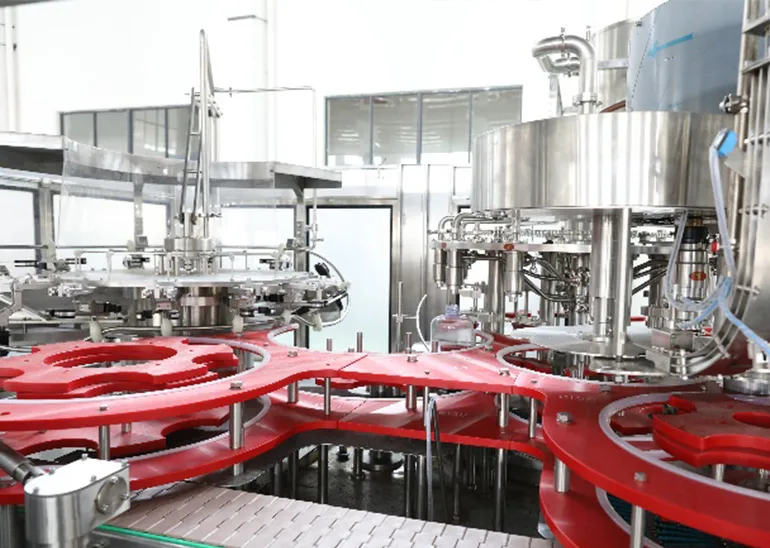

By incorporating semi-electric fillers into your bottling operations, you can significantly improve CO2 retention, reduce foaming, and achieve high-speed filling.

How do you size a CSD line without oversizing the CO2 plant?

Size the filler on peak shift demand with a production factor of 0.65-0.85, then size the CO2 supply on average consumption, not peak. A CO2 plant built for the filler nameplate runs partly loaded for most of the year and loses more gas to vaporisation than the line saves in speed.

Valve typeSettingBest for
MechanicalFixed cam profileSingle product, long runs
Semi-electricSignal-timed open and closeRecipe changes within one product family
VolumetricChamber dosePressure or temperature drift during the shift
Isobaric + volumetricChamber dose under counter-pressureHigh CO2 with tight fill accuracy

Rated output, change parts and services are listed on the Isobaric Filling Machine for CSD and Sparkling Water page.

How is syrup mixed and carbonated before the filler?

Syrup is proportioned and blended with treated water, then carbonated under pressure and temperature control. The ratio accuracy and the carbonation stability decide the product, and both are upstream of the filler. A filler cannot correct a drifting blend.

Where this becomes a line rather than a single machine, the CSD & Sparkling Water by Mechanical Filler is the starting point.

What is overfoaming at the filler and how is it controlled?

Overfoaming is gas leaving the product too fast at the end of fill. The pressure release has to be ramped, not dumped, and the fill height has to leave the right headspace. A snift valve that opens too early turns a good fill into a wet bottle.

The same question is worked through from another angle in How Blow-Fill-Cap Machines Reduce Contamination in Sparkling Water.

How to read the numbers. Capacity figures come from the specification range, and the range is wide by design. A rated BPH is measured at one CO2 level and one temperature; format changes and CIP sit outside it, so size on 0.65-0.85.

Frequently asked questions

Can one filling machine run both still water and CSD?

No. Carbonation needs isobaric valves under counter-pressure; still water runs gravity or volumetric. A combiblock can carry both valve sets, but they are specified separately and are not interchangeable at the push of a button.

Why is my fill level dropping through the shift?

Usually product temperature rising in the bowl or a worn valve seal. Both change the pressure balance, so the fill cuts off earlier. Log bowl temperature and fill weight together for one shift before changing any valve.

What is the difference between 2.5 and 4.0 volumes of CO2?

The higher the volumes, the sharper the mouthfeel and the more pressure the package must hold. Higher carbonation also needs a colder fill and a tighter pressure ramp, so it reduces practical line speed.

What causes a foaming spike at start-up?

Warm product and an empty bowl. The first bottles see the largest pressure step. A short recirculation before production and a controlled bowl cool-down remove most of it.

Key takeaways
  1. Carbonation is a pressure and temperature problem before it is a valve problem.
  2. Judge a CSD line on CO2 retention in the filled bottle, not on the mixer set point.
  3. Semi-electric and volumetric valves buy recipe flexibility; mechanical valves buy simplicity.
  4. Size the CO2 plant on average demand, not on the filler nameplate.
About the author
Written by the Sunswell engineering team - led by Howie SUN, Founder & CEO, with 14 years in filling and blow-moulding equipment R&D and turnkey project delivery across 71+ countries.
Last reviewed: 2026-08-28 . Reviewed by Sunswell engineering team
×
