| Filling system | Isobaric for beer and CSD, volumetric for juice and tea |
| Capacity | Up to 25,000 CPH |
| Can range | Standard 250, 330 and 500 ml |
| Seaming | Roller seamer integrated with the filler |
| Options | Hot fill for juice and tea, nitrogen dosing |
| Key control | Fill level, seam tightness, dissolved oxygen |
A can is sealed by two rolling operations that fold the can flange and the end together. Seam thickness, seam height and overlap are checked by tear-down at a fixed interval, not by eye. A seam that looks right and measures wrong leaks three weeks later, in the customer warehouse rather than on your line.
Beer and CSD run isobaric, cold, under counter-pressure. Juice and tea often run hot fill or a volumetric fill with a downstream pasteuriser. The can is the same format; the filler, the valve set and the temperature control are not, so one can line rarely covers both without a second specification.
One of the critical factors in the hotfill juice production process is temperature management.
| Product | Filling principle | Critical measurement |
|---|---|---|
| Beer | Isobaric, cold | Dissolved oxygen and seam tightness |
| CSD and soda | Isobaric, cold | CO2 retention and fill height |
| Juice and tea | Volumetric or hot fill | Fill temperature and seam integrity |
| Energy drinks | Isobaric or volumetric | Dissolved oxygen and closure |

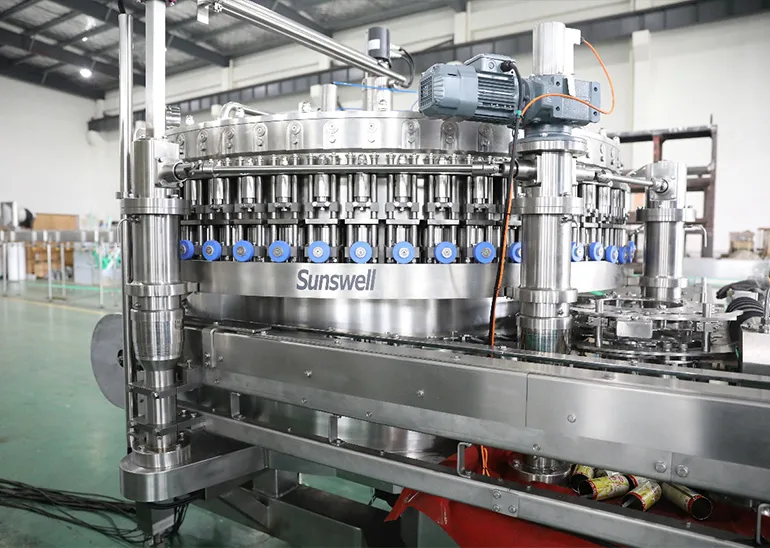

Site requirements, air and water consumption sit with the Aluminum Can Filling Machine for Hotfill Juice and Tea.
The filler discharges cans onto a transfer star wheel that hands each can to the seamer at a fixed pitch. Any slip at that transfer shows up as a damaged flange and a failed seam. The transfer is the most alignment-sensitive point on a can line.
Implementing sophisticated heat exchange technologies within the filling equipment allows for rapid heat transfer, ensuring that the juice reaches the desired temperature for pasteurization while preserving its nutritional and sensory properties.
Valve count, utility schedule and footprint sit on the Volumetric Aluminum Can Filling Machine for Hotfill Juice page.
A heated product path, a fill temperature control loop and a cooling tunnel after seaming. The can itself tolerates the heat; the lining and the product do not always. The temperature window belongs to the product specification.

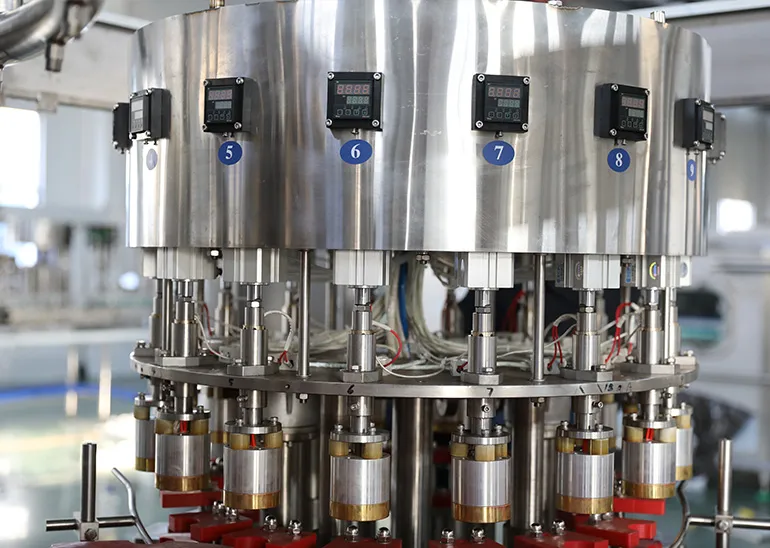

By leveraging precise temperature monitoring and regulation mechanisms, aluminum can fillers can efficiently handle the thermal requirements of hotfill juice production.
The same question is worked through from another angle in Canning Line Shipped To Kazakstan.
Cans are light and rigid, so they move on air conveyors and mass conveyors with low back pressure. Dents come from jams and from accumulation pressure, not from the filler. A can line that dents is a conveyor setting problem before it is a machine problem.
It is the oxygen left in the product after filling. It drives oxidation, off-flavour and haze. Beer and juice have tight limits, and the measurement belongs in the acceptance protocol, taken from the finished can.
At a fixed interval during production, by tear-down and measurement, plus a check after every seamer adjustment. The interval is set by the plant quality plan; the point is that it is measured, not inspected by eye.
With change parts for the filler, the seamer and the conveyor, yes. The changeover is longer than a label change and is normally scheduled between campaigns.
Usually seamer roll pressure, chuck wear or a can flange outside tolerance. The tear-down measures the result; the cause is found by checking the rolls and the can supplier specification together.
Yes, at the same filler, because the fill volume per cycle is smaller. The seamer and the packer still have to carry the higher can rate, which is why the line rating is set on cans per hour, not litres.
Country: Syria
Product: Aluminum Canned Carbonated Soft Drinks
Capacity: 24000CPH (250ml)
Solution:Carbonated Drinks Production Line
Country:Kazakhstan
Product: PET Bottled Sparkling Water, Canned Soft Drink, Canned Tea
Capacity: 25000CPH (250ml)
Solution:Three Lines,7000BPH(1.5L), 15000CPH(330ml),15000CPH(450ml)
