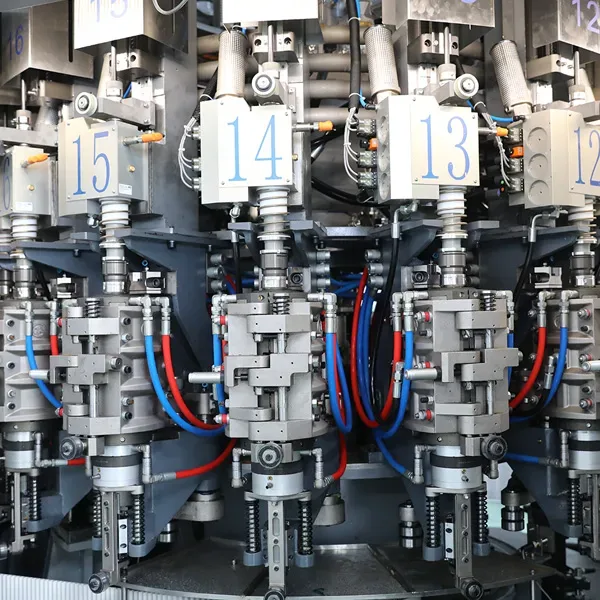

Cause Analysis on Position and Dimension Out-of-tolerance of Blowing Machine’s Frame

Views: 5270 Author: Howie SUN Publish Time: Update Time:
Blowing bottles in-house is a volume decision, because the mould cost per format has to be earned back before the bottle price saving starts. The tolerance of the distance between the central shaft hole and the swing arm hole is required to be (128.36 ± 0.02) mm, (81.28 ± 0.02) mm.

1V2A2582(1)

Key facts at a glance
TypesLinear and rotary blow moulding
InputPET preform, heated in an oven before blowing
OutputBottle matched to the filler neck and format
Key controlPreform temperature profile, mould cooling, stretch ratio
IntegrationStand-alone, or inside a combiblock
Key decisionBlow in-house or buy bottles

What decides bottle quality in blow moulding?

The preform temperature profile decides where the material goes. Too cold and the base is thin; too hot and the wall stretches unevenly. The mould cools the bottle into shape, and the stretch ratio set by the rod and the mould height fixes the wall distribution.

From the drawing analysis, the total length is 787mm and the wall thickness is 14mm.

Should you blow bottles in-house or buy them?

Blowing in-house saves the bottle price and the transport of empty bottles, but adds preform purchasing, a mould per format, compressed air and a skilled operator. Below a certain annual volume the mould cost per format outweighs the saving, which is why small plants buy bottles and large plants blow.

MachineOutput patternFormat changes
LinearLower output, more formatsFrequent, shorter changeover
RotaryHigh output, fewer formatsLonger changeover, more cavities
Two-stage on sitePreform bought inMould per format still required
Combiblock integratedLinked to fillerChangeover stops the whole block

Where this becomes a line rather than a single machine, the Linear Blow Molding is the starting point.

What does a mould change cost in time?

A mould change is a mechanical operation: mould halves, bottom insert, stretch rod height, oven recipe and gripper settings. On a linear machine it is a scheduled stop measured in tens of minutes; on a rotary machine it is longer because there are more cavities to set.

It can be seen from the machining process that the installation datum plane of the horizontal machining center is machined on the common milling machine X63K at one time.

The specification sheet for the Rotary Blow Molding carries the utility figures quoted here.

How is the oven temperature profile set?

Zone by zone along the preform, with more heat at the body and less at the neck. The profile follows the preform geometry and the bottle design. It is set once and checked on a schedule, because lamp ageing shifts it slowly.

After installation and clamping, the pressing plate is tightened, and the deformation of the workpiece in the X direction is 0.2-1mm, which indicates that the parts are deformed during pressing, and finally the coaxiality of the two holes is out of tolerance.

The same question is worked through from another angle in How Blow Molding Improves PET Bottle Strength for Water.

What does mould cooling water quality affect?

Cycle time and bottle appearance. Scale in the cooling channels reduces heat transfer, so the bottle stays soft and the cycle stretches. Water treatment for the mould circuit is part of the blowing installation, not an afterthought.

How to read the numbers. Capacity figures are the reference ranges on the product specification. Mould changes and oven warm-up sit outside a rated BPH, so plan on 0.65-0.85.

Frequently asked questions

What is the difference between linear and rotary blow moulding?

A linear machine moves preforms through heating and blowing in a straight path and suits lower outputs and frequent format changes. A rotary machine carries moulds on a wheel and suits high output with fewer changeovers.

How many preforms does a bottle need?

One preform per bottle. The preform weight is the bottle weight, so preform lightweighting is the main material saving, and it changes the blowing recipe and often the mould.

What air pressure does blow moulding need?

High-pressure air, typically in the range set by the machine builder for the bottle size. The exact figure and the consumption belong in the utility schedule; it is the largest energy item on a PET line.

What preform weight should a 500 ml water bottle use?

It follows the bottle design and the shelf life requirement, and it is set with the preform supplier. Lighter preforms save material and reduce the process window, so the blowing recipe has to be re-validated.

Why do bottles crack at the base?

Usually a cold base or an uneven stretch. The base is the last area to reach blowing temperature, and a short oven or a fast cycle leaves it under-stretched.

Key takeaways
  1. Preform temperature profile decides where the material goes.
  2. In-house blowing is a volume decision, not a technology decision.
  3. Neck finish links the bottle design to the filling line.
  4. Mould change is a scheduled stop, not an incident.
