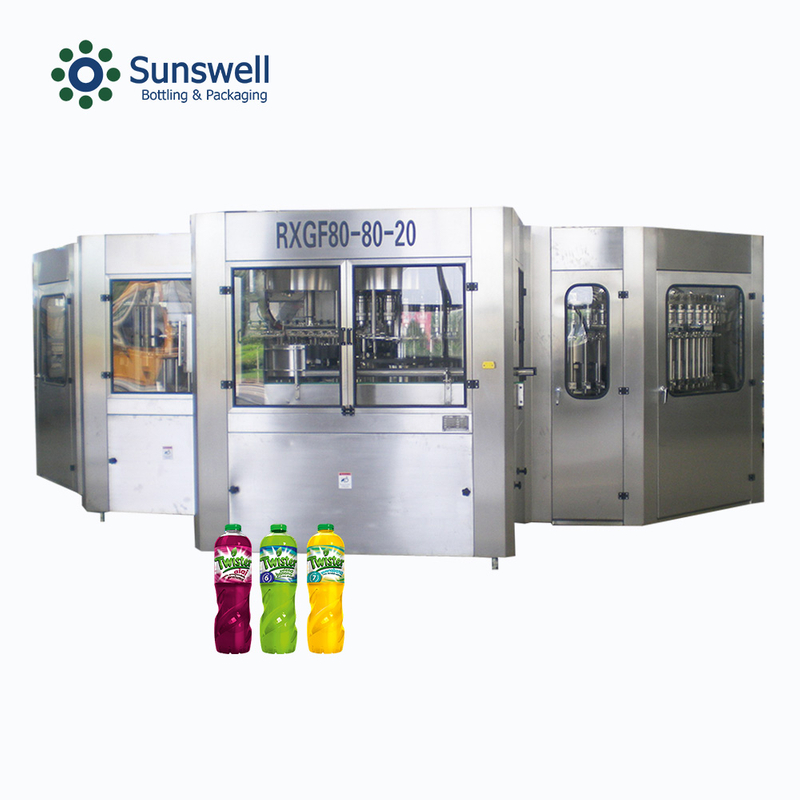

High Quality Beverage Automatic small business juice filling machines

Availability:
Quantity:
  • RXGF

  • Sunswell

12

General Description:

The machine is mainly used for washing/filling/capping PET bottle juice, tea drinks and all kinds of energy drink for hot filling.Only need to change a few spare parts, that can suitable for filling pure water and mineral water.

Application :

Fruit juice, NFC juice,energy drinks, ice tea drinks, coffee beverage,pulp juice , flavored milk , sports beverage drink,ginger
drink , flavored water drinks. Apple juice ,Orange juice, cherry juice, mango juice ,tomato juice, pineapple juice, guava juice,passion fruit drinks ,papaya juice

Technical Parameters:


Model
(RXGF)
14-12-5
16-16-5
24-24-6
32-32-8
40-40-10
50-50-12
60-60-15
72-72-15
Capacity
(500ML)
5000
7000
10000
15000
18000
22000
24000
30000
Suitable bottle (mm)
φ=50-110=170 330-2250ml
Washing pressure
2-3(kg/cm 2 )
Main Motor power
2.2kw
2.2kw
3kw
5.5kw
7.5kw
11kw
15kw
19kw
Dimensions (mm)
2400×1650×2500
2600×1920×2550
3100×2300×2800
3800×2800×2900
4600×2800×2900
5450×3300×2900
6500×4500×2900
7680×6640×2850
Weight (kg)
2500
3500
4500
6500
8500
9800
12800
15000

Main configurations:


1. Material of filling valve: Stainless steel 316L available
2. Material of rotary tray and machine platform of rinser and filler: Stainless steel 304.
3. Main motor: ABB/SEW (Germany)
4. Sliding bearing: Igus (Germany)
5. Frequency inverter: MITSUBISHI (Japan)
6. Touch screen: DIGITAL (Japan).
7. PLC: MITSUBISH (Japan)
8. Pneumatic components: FESTO (Germany)
9. Seals: Busak+Shamban (USA)
10. Photocell switch: BANER (USA).
11. Proximity switch: TURCK (Germany).

Main Structure:

1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing pump.
2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.

3


Turnkey/complete bottling water production line ::

1. Juice preparation system (sugar melting/dissolve , juice blending tanks, juice sterilize /pasteurizer , homogenizer,CIP)
2. Bottle blowing system make PET plastic bottles (Semi automatic / Fully automatic)
3. Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
4. Air conveyor for empty bottle loading
5. Rinser-filler-capper 3 in 1 monoblock
6. Cap loader load caps
7. Code printer (Ink-jet printer/ laser-jet printer)
8. Labeling machine (PVC sleelve labeling machine /OPP hot melt glue labeling machine/Self-adheisive labeling machine)
9. End packaging ( PE shrink wrapping machine / Carton packing machine)

Project picture:

3

4

5

sunswellcn-产品详情页_03

sunswellcn-产品详情页_05

sunswellcn-产品详情页_06

sunswellcn-产品详情页_09

> the wide range of liquid packaging plant machinery

> the various range of possible end products

> 10+ years of global market experience

> 80+ countries of customers worldwide

 > 20+ mechanical, electrical and food science engineers

> 10+ service staff

sunswellcn-产品详情页_11



FAQ
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.

Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.

Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If
needed.Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.

Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.

Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units tosave international courier such as DHL, it is really costly.

Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.

Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
