Glass Bottle Filling Machine

Introduction of Glass Bottle FIlling Machine

Basic Info
APPLICATION:
water, soda water, juice, carbonated drinks, CSD, cola, soda water, energy drinks, kvass, beer, etc.
CONTAINERS APPLIED FOR:
glass bottle
FILLING SYSTEM:
gravity or isobaric filling
PRODUCTION CAPACITY:
2,000-30,000BPH (500ml)

Technical Features of Glass Bottle Filling Machine

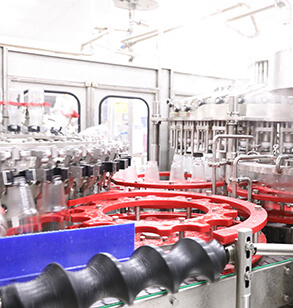

      The top-chain conveyor is directly connected with infeed screw.
      High speed line adopts bottle clamps to transfer the bottle. It makes work much easier when bottle size is changed.

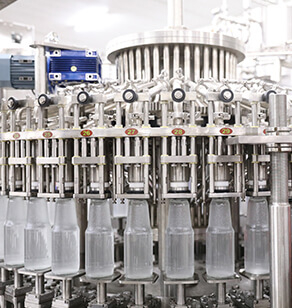

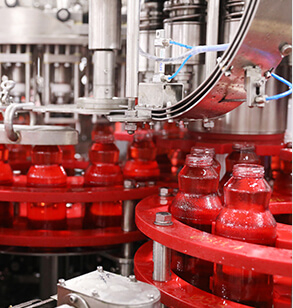

      By 2-in-1 or 3-in-1 monoblock, the bottle goes through (rinsing), filling and capping with little abrasion, and the transferring is stable, bottle change is easier.
      Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
      The high speed line is of ring type pressure bearing hydraulic cylinder.

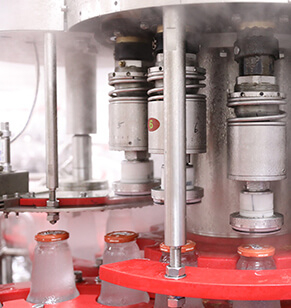

      High speed and large flow filling valve assures the high filling speed and exact fluid level.
      Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.

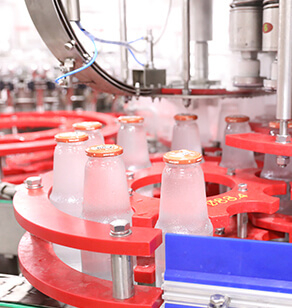

      The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain’s height.

Technical Parameter of Glass Bottle Filling Machine

Model BDGF12-5 BDGF18-6 BDGF24-6 BDGF32-8 BDGF40-10 BDGF50-12 BDGF72-15

Capacity

[BPH/500ml]

2,000 3,000 5,000 9,000 12,000 18,000 24,000
Model BRGF12-5 BRGF16-5 BRGF24-6 BRGF32-8 BRGF40-10 BRGF50-12 BRGF60-15 BRGF72-18

Capacity

[BPH/500ml]

5,000 7,000 10,000 15,000 18,000 21,000 24,000 30,000

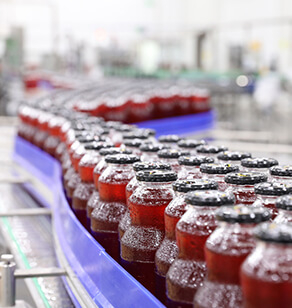

Structure of Glass Bottle Filling Machine
