CSD Filling Machine

Introduction of CSD FIlling Machine

Basic Info
APPLICATION:
carbonated drinks, CSD, cola, soda water,
energy drinks, kvass, beer, etc.
CONTAINERS APPLIED FOR:
PET bottle of all volumes and shapes
FILLING SYSTEM:
isobaric filling
PRODUCTION CAPACITY:
3,000BPH – 24,000BPH (500ml)

Technical Features of CSD Filling Machine

      The air conveyor is directly connected with bottle-in starwheel. The bottle is transferred by neck holding.
      High speed line adopts bottle clamps to transfer the bottle. It makes work much easier when bottle size is changed.
      By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle change is easier.
      Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
      The high speed line is of ring type pressure bearing hydraulic cylinder.
      High speed and large flow filling valve assures the high filling speed and exact fluid level.
      Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
      The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain’s height.

Technical Parameter of CSD Filling Machine

ModelDXGF18-18-6DXGF24-24-6DXGF24-32-6DXGF40-40-10DXGF50-50-12RXGF72-72-15

Capacity

[BPH/500ml]

3,0006,0009,00012,00018,00024,000

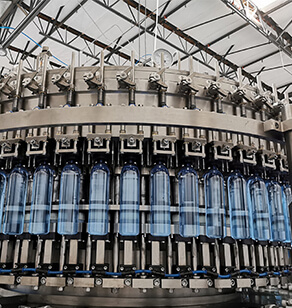

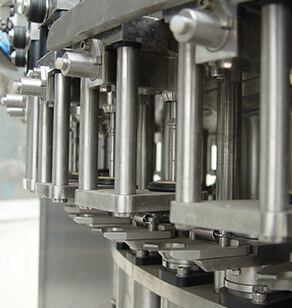

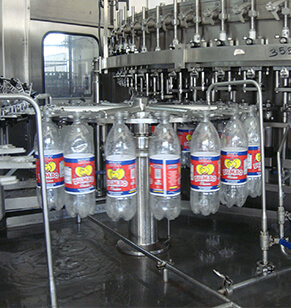

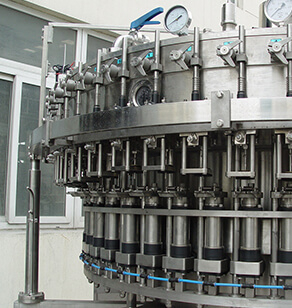

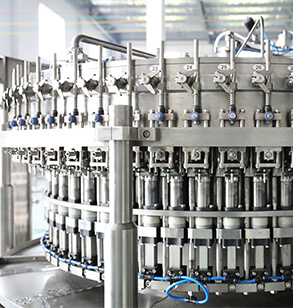

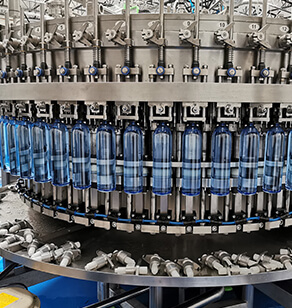

Structure of CSD Filling Machine
